IRA-S210ST01
LTBBOARD MOUNT MOTION & POSITION SENSORS PIR SENSOR, PIR MOTION SENSOR, PYROELECTRIC INFRARED SENSOR, OPTICAL SENSOR
IRA-S210ST01
LTBBOARD MOUNT MOTION & POSITION SENSORS PIR SENSOR, PIR MOTION SENSOR, PYROELECTRIC INFRARED SENSOR, OPTICAL SENSOR
Description
General part information
IRA-S Series

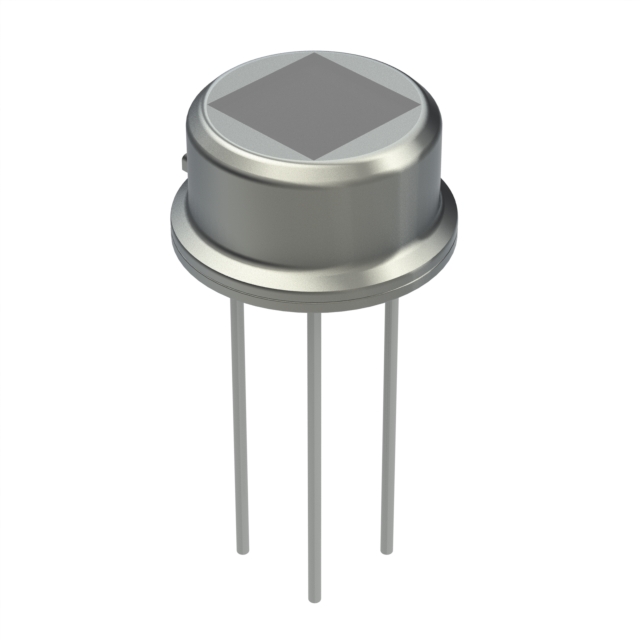

IRA-S210ST01 is a IRA-S series pyroelectric infrared sensor (lead type) deliver high sensitivity and reliable performance made possible by Murata's ceramic technology. Used mainly in security equipment. Combining performance with low costs, the IRA-S series makes it easier to use pyroelectric infrared sensor in security application and general consumer equipment.
Technical Specifications
Parameters and characteristics for this part
| Specification | IRA-S210ST01 |
|---|---|
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Voltage |
| Package Leads | 3 Leads |
| Package Name | Metal Can, Lensed, Radial |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | External |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 2 V |
