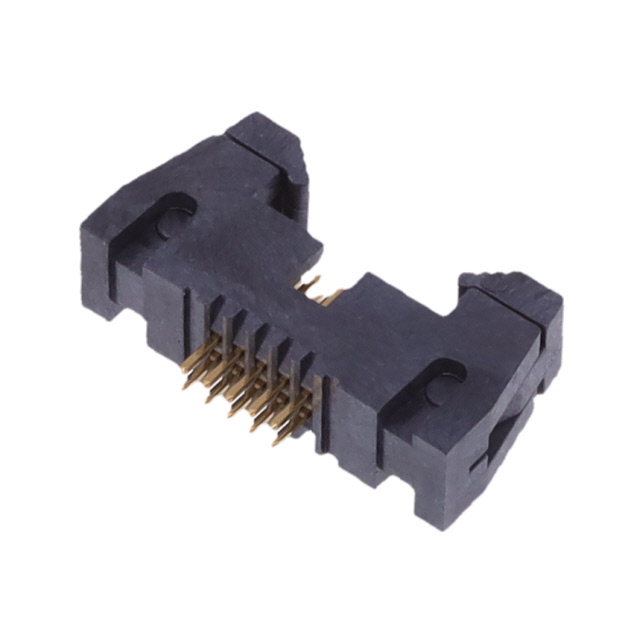

20021611-00010T4LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 10POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
20021611-00010T4LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 10POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20021611-00010T4LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.327 " |
| Insulation Height | 8.3 mm |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.43 | |
| 13 | $ 2.02 | |||
| 104 | $ 1.75 | |||
| 507 | $ 1.56 | |||
| 1001 | $ 1.49 | |||
| 5005 | $ 1.33 | |||
Description
General part information
20021611 Series
Connector Header Through Hole 10 position 0.050" (1.27mm)
