1106-1521-003

Active

Radiall USA, Inc.

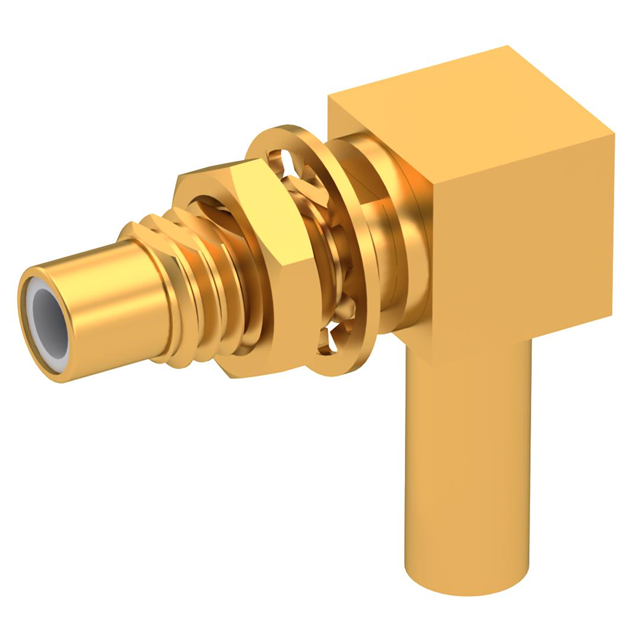

SMC M RA NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC M RA NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1106-1521-003

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

SMC M RA NA CR 2.6/50S

Part	Housing Color	Impedance	Voltage Rating	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Center Contact Material	Number of Ports	Connector Style	Contact Termination	Insertion Loss	Cable Group	Dielectric Material	Body Material	Mating Cycles	Includes	Frequency - Max [Max]	Mounting Feature	Shield Termination	Center Contact Plating
Radiall USA, Inc. 1106-1521-003	Gold	50 Ohms	335 V	Gold	Jack, Male Pin	-65 ░C	165 °C	Panel Mount, Right Angle	Brass	1	SMC	Crimp	0.5 dB	179, 316, RG-174	Polytetrafluoroethylene (PTFE)	Brass	500	1 Connector, 1 Lockwasher, 1 Nut	10 GHz	Bulkhead - Front Side Nut	Crimp	Gold
