Technical Specifications
Parameters and characteristics commom to parts in this series

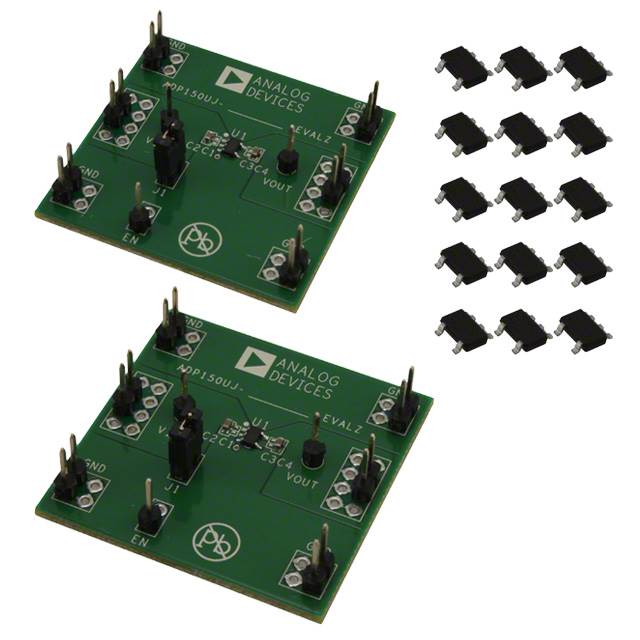

| Specification | ADP150UJZ-REDYKIT | ADP150 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Control Features | - | Enable |
| Current - Output | 150 mA | 150 mA |
| Current - Quiescent (Iq) | - | 22 µA |
| Current - Supply (Max) | - | 320 µA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Package / Case | - | WLCSP, 4-WFBGA, TSOT-23-5, SOT-23-5 Thin |
| Protection Features | - | Under Voltage Lockout (UVLO), Over Current, Over Temperature |
| PSRR | - | 70 dB |
| PSRR | - | 55 dB |
| Regulator Type | Positive Fixed | Positive Fixed |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 0.76 |
| Supplier Device Package | - | 4-WLCSP |
| Supplier Device Package | - | 0.76 |
| Utilized IC / Part | ADP150 | ADP150 |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input [Max] | 5.5 V | 5.5 V |
| Voltage - Input [Min] | 2.2 V | 2.2 V |
| Voltage - Output | 3.3 V, 1.8 V | 1.8 - 3.3 V |
| Voltage - Output (Min/Fixed) | - | 2.5 - 3.3 V |
| Voltage Dropout (Max) | - | 0.16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 69.17 | |
ADP150 Series
Ultralow Noise, 150 mA CMOS Linear Regulator
| Part | Voltage Dropout (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] | Output Configuration | Number of Regulators | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Protection Features | Package / Case | Control Features | Current - Supply (Max) [Max] | Current - Output | Output Type | Current - Quiescent (Iq) | Channels per IC | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Board Type | Utilized IC / Part | Regulator Type | PSRR [Max] | PSRR [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc ADP150ACBZ-2.6-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.6 V | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | ||||||||||
Analog Devices Inc ADP150AUJZ-2.5-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.5 V | 5.5 V | Positive | 1 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | SOT-23-5 Thin, TSOT-23-5 | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | |||||||||||||
Analog Devices Inc ADP150ACBZ-2.85R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.85 V | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | ||||||||||
Analog Devices Inc ADP150ACBZ-3.0-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 ĄA | 150 mA | 27.03 °C/W | 22 ĄA | |||||||||||
Analog Devices Inc ADP150UJZ-REDYKIT | 150 mA | 1 | Board(s) | 5.5 V | 2.2 V | 1.8 V, 3.3 V | Fully Populated | ADP150 | Positive Fixed | |||||||||||||||||||
Analog Devices Inc ADP150AUJZ-2.8-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.8 V | 5.5 V | Positive | 1 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | SOT-23-5 Thin, TSOT-23-5 | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | |||||||||||||
Analog Devices Inc ADP150AUJZ-2.65-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.65 V | 5.5 V | Positive | 1 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | SOT-23-5 Thin, TSOT-23-5 | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | |||||||||||||
Analog Devices Inc ADP150ACBZ-2.75R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.75 V | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | ||||||||||
Analog Devices Inc ADP150ACBZ-2.8-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 2.8 V | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | ||||||||||
Analog Devices Inc ADP150ACBZ-3.3-R7 | 0.16 V | 125 °C | -40 °C | Surface Mount | 3.3 V | 5.5 V | Positive | 1 | 0.76 | 4-WLCSP | 0.76 | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 4-WFBGA, WLCSP | Enable | 320 µA | 150 mA | 27.03 °C/W | 22 µA | 70 dB | 55 dB |
Description
General part information
ADP150 Series
The ADP150 is an ultralow noise (9 μV), low dropout, linear regulator that operates from 2.2 V to 5.5 V and provides up to 150 mA of output current. The low 105 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.Using an innovative circuit topology, the ADP150 achieves ultralow noise performance without the necessity of an additional noise bypass capacitor, making it ideal for noise sensitive analog and RF applications. The ADP150 also achieves ultralow noise performance without compromising PSRR or line and load transient performance. The ADP150 offers the best combination of ultralow noise and quiescent current consumption to maximize battery life in portable applications.The ADP150 is specifically designed for stable operation with tiny 1 μF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.The ADP150 is available in 14 fixed output voltage options, ranging from 1.8 V to 3.3 V.Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP150 is available in tiny 5-lead TSOT and 4-ball, 0.4 mm pitch WLCSP packages for the smallest footprint solution to meet a variety of portable power applications.APPLICATIONSMobile phonesDigital camera and audio devicesPortable and battery-powered equipmentPost dc-to-dc regulationPortable medical devicesRF, voltage controlled oscillator (VCO), and phase locked loop (PLL) power supplies
