Specification	1053081216

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Non-Gendered
Fastening Type	Latch Lock
Insulation Material	Nylon 4T, Polyamide (PA4T), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch	0.098 in
Row Spacing	0.098 in

105308 Series

Part	Contact Termination	Color	Number of Rows	Pitch	Row Spacing	Insulation Material	Contact Type	Connector Type	Fastening Type	Number of Positions	Mounting Type	Note
Molex 1053081208	Crimp	Black	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	8	Free Hanging (In-Line)	Contacts Not Included
Molex 1053082204	Crimp	Natural	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	4	Free Hanging (In-Line)	Contacts Not Included
Molex 1053082212	Crimp	Natural	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	12	Free Hanging (In-Line)	Contacts Not Included
Molex 1053082208	Crimp	Natural	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	8	Free Hanging (In-Line)	Contacts Not Included
Molex 1053082206	Crimp	Natural	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	6	Free Hanging (In-Line)	Contacts Not Included

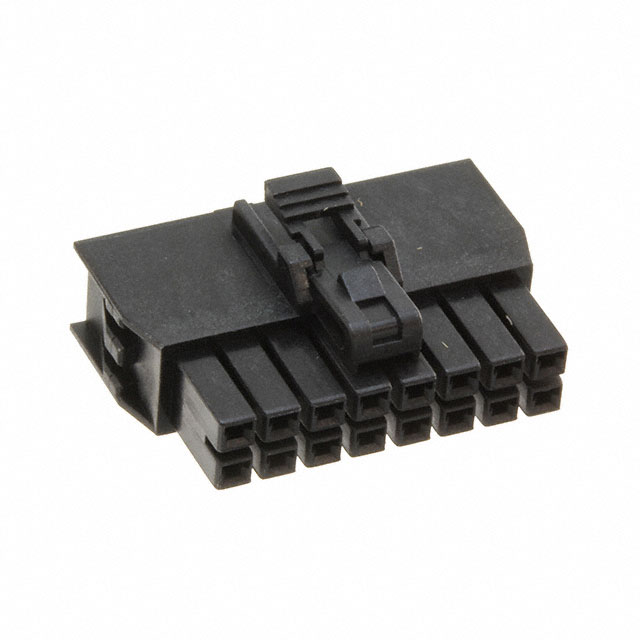

Molex 1053081216	Crimp	Black	2	0.098 in	0.098 in	Glass Filled Nylon 4T Polyamide (PA4T)	Non-Gendered	Receptacle	Latch Lock	16	Free Hanging (In-Line)	Contacts Not Included
