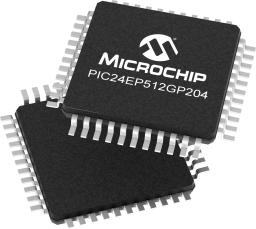

Specification	PIC24EP512GP204-I/TL

A/D Channels	9 count
A/D Resolution (bits)	10 bit, 12 bit
Connectivity	USART, UART, IrDA, LINbus, I2C, SPI
Core Processor	PIC
Core Size (Bit Width)	16 Bit
Mounting Type	Surface Mount
Number of I/O	35
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	44-VFTLA Exposed Pad
Package Length	6 mm
Package Name	44-VTLA
Package Width	6 mm
Peripherals	PWM, POR, Reset, WDT, Brown-out Detect, DMA
Program Memory Depth	170 K
Program Memory Size	512 KB
Program Memory Type	FLASH
Program Memory Width	24
RAM Size Depth	24 K
RAM Size Width	16 bit
Speed	70 MIPs
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	3 V

PIC24EP512GP204 Series

Part	Program Memory Type	Core Processor	Program Memory Size	Program Memory Depth	Program Memory Width	Grade	Connectivity	Qualification	Oscillator Type	Speed	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	A/D Resolution (bits)	A/D Channels	RAM Size Width	RAM Size Depth	Operating Temperature (Max)	Operating Temperature (Min)	Core Size (Bit Width)	Mounting Type	Package / Case	Peripherals	Package Length	Package Name	Package Width	Number of I/O
Microchip Technology PIC24EP512GP204-E/ML	FLASH	PIC	512 KB	170 K	24	Automotive	I2C IrDA LINbus SPI UART USART	AEC-Q100	Internal	60 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	125 °C	-40 °C	16 Bit	Surface Mount	44-VQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	8 mm	44-QFN	8 mm	35
Microchip Technology PIC24EP512GP204-E/MV	FLASH	PIC	512 KB	170 K	24	Automotive	I2C IrDA LINbus SPI UART USART	AEC-Q100	Internal	60 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	125 °C	-40 °C	16 Bit	Surface Mount	48-UFQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	6 mm	48-UQFN	6 mm	35
Microchip Technology PIC24EP512GP204-I/TL	FLASH	PIC	512 KB	170 K	24		I2C IrDA LINbus SPI UART USART		Internal	70 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	85 °C	-40 °C	16 Bit	Surface Mount	44-VFTLA Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	6 mm	44-VTLA	6 mm	35
Microchip Technology PIC24EP512GP204-I/PT	FLASH	PIC	512 KB	170 K	24		I2C IrDA LINbus SPI UART USART		Internal	70 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	85 °C	-40 °C	16 Bit	Surface Mount	44-TQFP	Brown-out Detect DMA POR PWM Reset WDT	10 mm	44‑TQFP	10 mm	35
Microchip Technology PIC24EP512GP204T-I/MV	FLASH	PIC	512 KB	170 K	24		I2C IrDA LINbus SPI UART USART		Internal	70 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	85 °C	-40 °C	16 Bit	Surface Mount	48-UFQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	6 mm	48-UQFN	6 mm	35
Microchip Technology PIC24EP512GP204-I/ML	FLASH	PIC	512 KB	170 K	24		I2C IrDA LINbus SPI UART USART		Internal	70 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	85 °C	-40 °C	16 Bit	Surface Mount	44-VQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	8 mm	44-QFN	8 mm	35
Microchip Technology PIC24EP512GP204T-I/ML	FLASH	PIC	512 KB	170 K	24		I2C IrDA LINbus SPI UART USART		Internal	70 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	85 °C	-40 °C	16 Bit	Surface Mount	44-VQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	8 mm	44-QFN	8 mm	35
Microchip Technology PIC24EP512GP204T-E/ML	FLASH	PIC	512 KB	170 K	24	Automotive	I2C IrDA LINbus SPI UART USART	AEC-Q100	Internal	60 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	125 °C	-40 °C	16 Bit	Surface Mount	44-VQFN Exposed Pad	Brown-out Detect DMA POR PWM Reset WDT	8 mm	44-QFN	8 mm	35
Microchip Technology PIC24EP512GP204T-E/PT	FLASH	PIC	512 KB	170 K	24	Automotive	I2C IrDA LINbus SPI UART USART	AEC-Q100	Internal	60 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	125 °C	-40 °C	16 Bit	Surface Mount	44-TQFP	Brown-out Detect DMA POR PWM Reset WDT	10 mm	44‑TQFP	10 mm	35
Microchip Technology PIC24EP512GP204-H/PT	FLASH	PIC	512 KB	170 K	24	Automotive	I2C IrDA LINbus SPI UART USART	AEC-Q100	Internal	60 MIPs	3.6 V	3 V	10 bit 12 bit	9 count	16 bit	24 K	150 °C	-40 °C	16 Bit	Surface Mount	44-TQFP	Brown-out Detect DMA POR PWM Reset WDT	10 mm	44‑TQFP	10 mm	35
