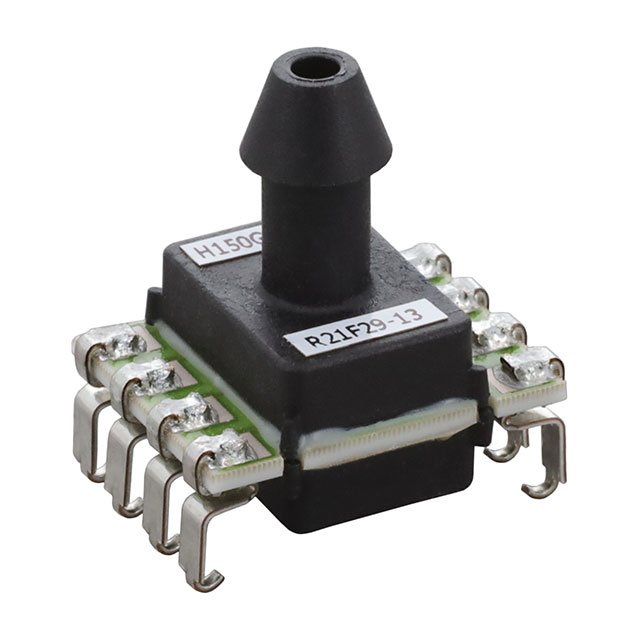

ELVH-150G Series

Part	Voltage - Supply	Operating Temperature (Max)	Operating Temperature (Min)	Output Bits	Output Type	Package Length	Package Features	Package Name	Package Width	Maximum Pressure	Operating Pressure	Mounting Type	Pressure Type	Accuracy	Port Style	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Port Diameter	Port Gender	Port Feature	Features	Termination Style	Package / Case
McGill Microwave Systems ELVH-150G-HAND-I-N2A4	3.3 V	85 °C	-20 °C	14 b	I2C	0.524 in	Side Port	8-DIP	13.3 mm	250.05 PSI	150 PSI	Through Hole	Gauge	0.25 %	Barbed	5.5 V	2.7 V	0.19 "	Male	Tube	Temperature Compensated	PC Pin
McGill Microwave Systems ELVH-150G-HANJ-I-NAA4	3.3 V	85 °C	-20 °C		Analog Voltage					250.05 PSI	150 PSI	Surface Mount	Gauge	0.25 %	Barbed	5.5 V	2.7 V	0.19 "	Male	Tube	Temperature Compensated	J Lead	8-SMD J-Lead Top Port
McGill Microwave Systems ELVH-150G-HAND-C-PSA4	3.3 V	50 °C	0 °C	14 b	SPI	0.524 in	Top Port	8-DIP	13.3 mm	250.05 PSI	150 PSI	Through Hole	Gauge	0.25 %	Barbed	5.5 V	2.7 V	0.19 "	Male	Tube	Temperature Compensated	PC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
