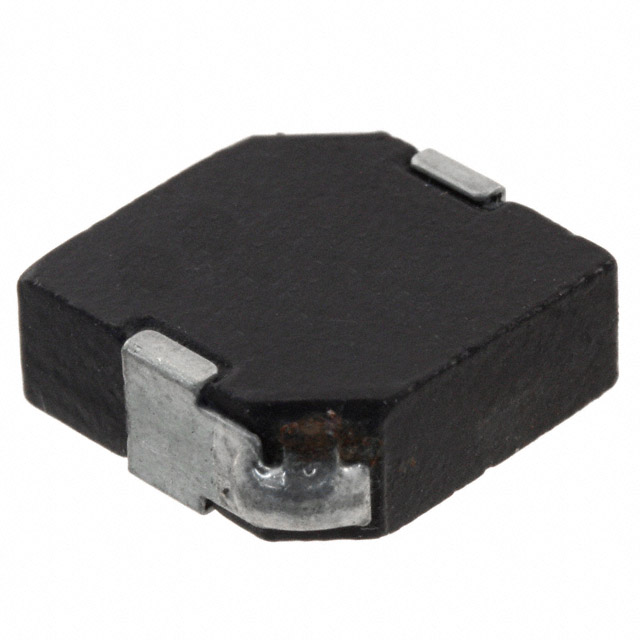

PM12645S-1R8M-RC
ActiveBourns Inc.
FIXED IND 1.8UH 21A 4.7 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM12645S-1R8M-RC
ActiveBourns Inc.
FIXED IND 1.8UH 21A 4.7 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM12645S-1R8M-RC |
|---|---|
| Current - Saturation (Isat) | 40 A |
| Current Rating (Amps) | 21 A |
| DC Resistance (DCR) [Max] | 4.7 mOhm |
| Height - Seated (Max) [Max] [z] | 5.9 mm |
| Height - Seated (Max) [Max] [z] | 0.232 " |
| Inductance | 1.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.547 in |
| Size / Dimension [x] | 13.9 mm |
| Size / Dimension [y] | 0.531 in |
| Size / Dimension [y] | 13.5 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
