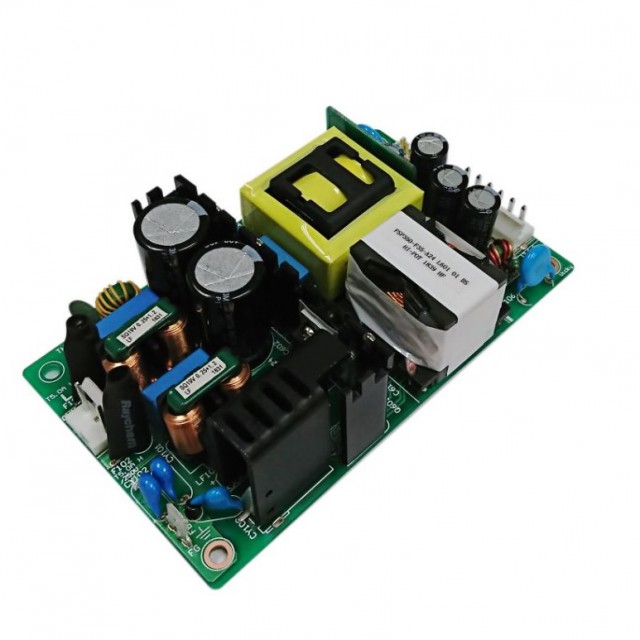

FSP350-F35-A12

Active

FSP Technology Inc.

AC/DC CONVERTER 12V 200W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC CONVERTER 12V 200W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 12V 200W

Part	Features	Efficiency	Standard Number	Current - Output 1	Number of Outputs	Mounting Type	Applications	Minimum Load Required	Type	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
FSP Technology Inc. FSP350-F35-A12	PFC, Universal Input	92 %	60950-1, 62368-1	16.7 A	1	Chassis Mount	ITE (Commercial)		Open Frame	500 V	90 VAC	264 VAC	350 W	200 W	12 V	CB, cCSAus, CE, FCC, UL, VCCI	-20 °C	70 °C	5 in	3 "	1.28 in	32.4 mm	76.2 mm	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources
