BA3AAPC-UL94V-0

Active

MPD (Memory Protection Devices)

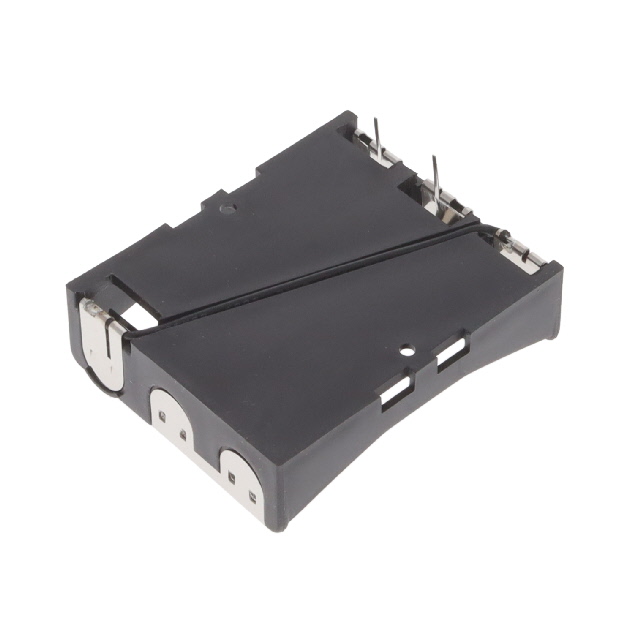

BATTERY HOLDER AA 3 CELL SMD

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATTERY HOLDER AA 3 CELL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Holder (Open) AA 3 Cell SMD (SMT) Tab

Technical documentation and resources

No documents available

Specification	BA3AAPC-UL94V-0	BA3AA Series

Battery Cell Size	AA	AA
Battery Type, Function	Cylindrical, Holder	Cylindrical, Holder
Height Above Board	16.38 mm	16.38 mm
Height Above Board	0.645 in	0.645 in
Mounting Type	PCB, Surface Mount	Chassis Mount, PCB, Surface Mount
Number of Cells	3	3
Style	Holder (Open)	Holder (Open)
Termination Style	SMD (SMT) Tab	Wire Leads - 6" (152.4mm), SMD (SMT) Tab, PC Pin

Part	Termination Style	Battery Cell Size	Battery Type, Function	Style	Number of Cells	Mounting Type	Height Above Board	Height Above Board
MPD (Memory Protection Devices) BA3AAW	Wire Leads - 6" (152.4mm)	AA	Cylindrical, Holder	Holder (Open)	3	Chassis Mount
MPD (Memory Protection Devices) BA3AAPC-UL94V-0	SMD (SMT) Tab	AA	Cylindrical, Holder	Holder (Open)	3	PCB, Surface Mount	16.38 mm	0.645 in
MPD (Memory Protection Devices) BA3AAPC	PC Pin	AA	Cylindrical, Holder	Holder (Open)	3		16.38 mm	0.645 in
