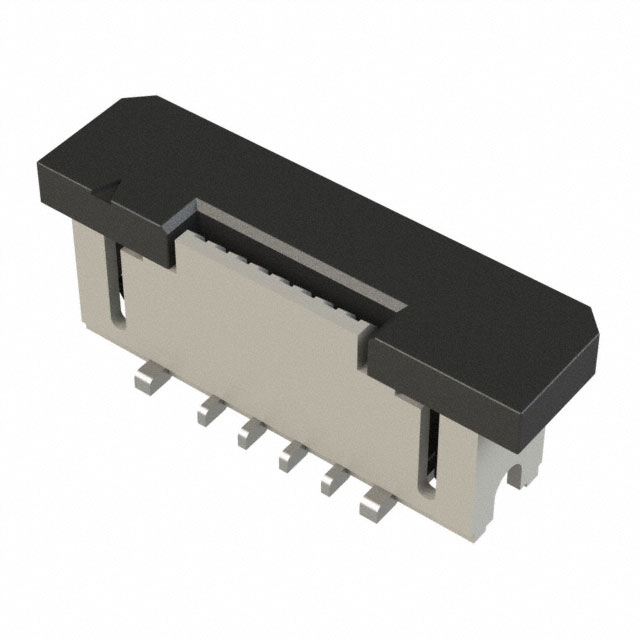

FFC2A32-08-T

Active

GCT

CONN FFC FPC VERT 8POS 0.5MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet GCT FFC Product Slection Guide

FFC2A32-08-T

Active

GCT

CONN FFC FPC VERT 8POS 0.5MM SMD

Deep-Dive with AI

DocumentsDatasheet GCT FFC Product Slection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFC2A32-08-T

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.167 in
Height Above Board [z]	4.25 mm
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	30 VDC

FFC2A32 Series

Part	Pitch [x]	Pitch [x]	Contact Material	Connector/Contact Type	Cable End Type	Current Rating (Amps)	Mating Cycles	Termination	Actuator Color	Number of Positions	Flat Flex Type	Material Flammability Rating	Mounting Type	Actuator Material	Housing Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Features	Height Above Board [z]	Height Above Board [z]	Locking Feature	Voltage Rating	FFC, FCB Thickness
GCT FFC2A32-06-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	6	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-08-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	8	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-50-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	50	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-20-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	20	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-12-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	12	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-10-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	10	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-40-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	40	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-24-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	24	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm
GCT FFC2A32-30-T	0.5 mm	0.02 in	Phosphor Bronze	Contacts Vertical - 1 Sided	Tapered	0.2 A	20	Solder	Black	30	FFC FPC	UL94 V-0	Surface Mount	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Tin	-25 °C	85 °C	Natural	Solder Retention Zero Insertion Force (ZIF)	0.167 in	4.25 mm	Slide Lock	30 VDC	0.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.40
		10	$ 0.34
		25	$ 0.30
		50	$ 0.27
		100	$ 0.26
		250	$ 0.24
		500	$ 0.22
	Digi-Reel®	1	$ 0.40
		10	$ 0.34
		25	$ 0.30
		50	$ 0.27
		100	$ 0.26
		250	$ 0.24
		500	$ 0.22
	Tape & Reel (TR)	1200	$ 0.19
		2400	$ 0.17
		6000	$ 0.16
		8400	$ 0.15
		12000	$ 0.14
		30000	$ 0.14
		60000	$ 0.14

Description

General part information

FFC2A32 Series

8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
