CH6PC,GY

Active

Serpac

BOX ABS GRAY 2.39"L X 1.74"W

Deep-Dive with AI

Search across all available documentation for this part.

CH6PC,GY

Active

Serpac

BOX ABS GRAY 2.39"L X 1.74"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CH6PC,GY

Area (L x W) [custom]	4.16 in²
Area (L x W) [custom]	26.8 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	19.18 mm
Height [z]	0.755 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	60.71 mm
Size / Dimension [x]	2.39 "
Size / Dimension [y]	44.2 mm
Size / Dimension [y]	1.74 "
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.038 lb
Weight	17.24 g

CH6 Series

Part	Height [z]	Height [z]	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Material	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Thickness	Thickness	Material Flammability Rating	Weight	Weight
Serpac CH6KH,GY	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Gray	Plastic ABS	IP40	Key Holder	4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.032 lb	14.51 g
Serpac CH6,AL	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Almond	Plastic ABS	IP40		4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.031 lb	14.06 g
Serpac CH6PC,GY	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Gray	Plastic ABS	IP40	Pocket Clip	4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.038 lb	17.24 g
Serpac CH6KH,BK	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Black	Plastic ABS	IP40	Key Holder	4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.032 lb	14.51 g
Serpac CH6KH,AL	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Almond	Plastic ABS	IP40	Key Holder			Box	1.52 mm	0.06 in	UL94 HB	0.032 lb	14.51 g
Serpac CH6,BK	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Black	Plastic ABS	IP40		4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.031 lb	14.06 g
Serpac CH6PC,AL	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Almond	Plastic ABS	IP40	Pocket Clip	4.16 in²	26.8 cm²	Box	1.52 mm	0.06 in	UL94 HB	0.038 lb	17.24 g
Serpac CH6,GY	19.18 mm	0.755 in	Hand Held Split Sides	60.71 mm	44.2 mm	1.74 "	2.39 "	Gray	Plastic ABS	IP40				Box	1.52 mm	0.06 in	UL94 HB	0.031 lb	14.06 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.74

Description

General part information

CH6 Series

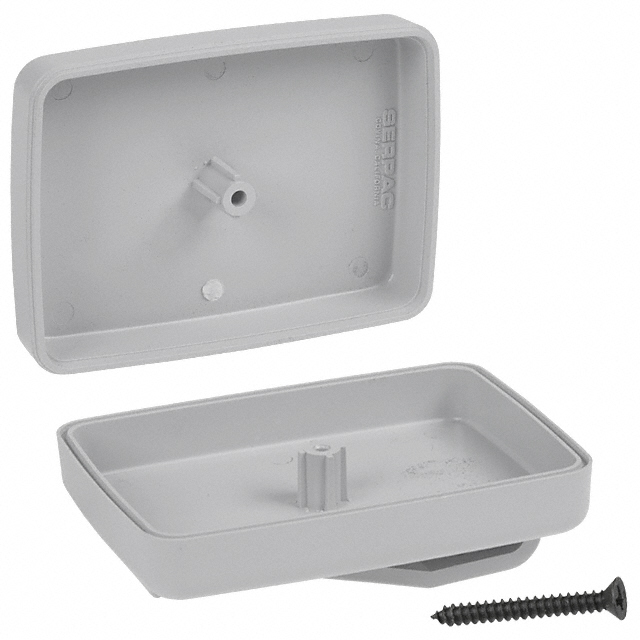

Box Plastic, ABS Gray Hand Held, Split Sides 2.390" L x 1.740" W (60.71mm x 44.20mm) X 0.755" (19.18mm)

Documents

Technical documentation and resources

No documents available
