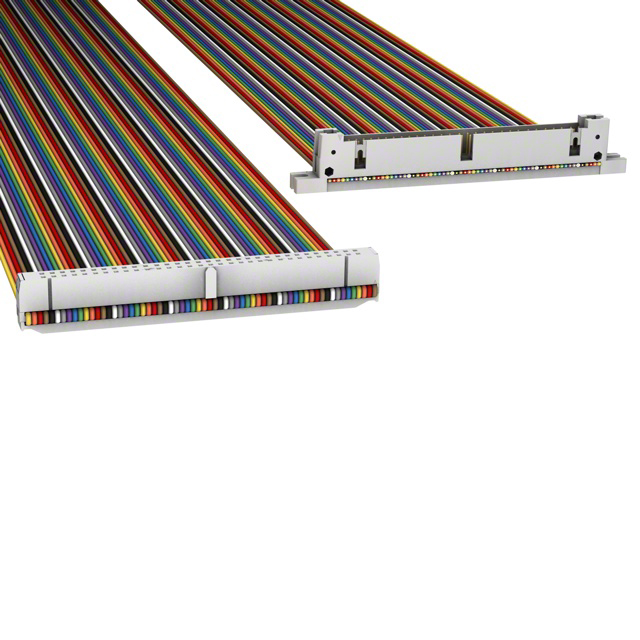

H3DWH-6436M

Active

Assmann WSW Components

IDC CBL - HHKR64H/AE64M/HHPL64H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR64H/AE64M/HHPL64H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DWH-6436M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Flange, Strain Relief (Socket)
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	64
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Pitch - Cable	Pitch - Cable	Shielding	Length	Length	Length	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Features	Cable Termination	Connector Type	Contact Finish	Number of Rows	Color	Length [x]	Length [x]
Assmann WSW Components H3DWH-6406G	0.05 "	1.27 mm	Unshielded	152.4 mm	6 "	0.5 '	64	0.1 in	2.54 mm	15 µin	0.38 µm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	2
Assmann WSW Components H3DWH-6436M	0.05 "	1.27 mm	Unshielded				64	0.1 in	2.54 mm	15 µin	0.38 µm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	2	Multiple Ribbon	3 ft	914.4 mm
Assmann WSW Components H3DWH-6406M	0.05 "	1.27 mm	Unshielded	152.4 mm	6 "	0.5 '	64	0.1 in	2.54 mm	15 µin	0.38 µm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	2	Multiple Ribbon
Assmann WSW Components H3DWH-6436G	0.05 "	1.27 mm	Unshielded				64	0.1 in	2.54 mm	15 µin	0.38 µm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	2		3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
