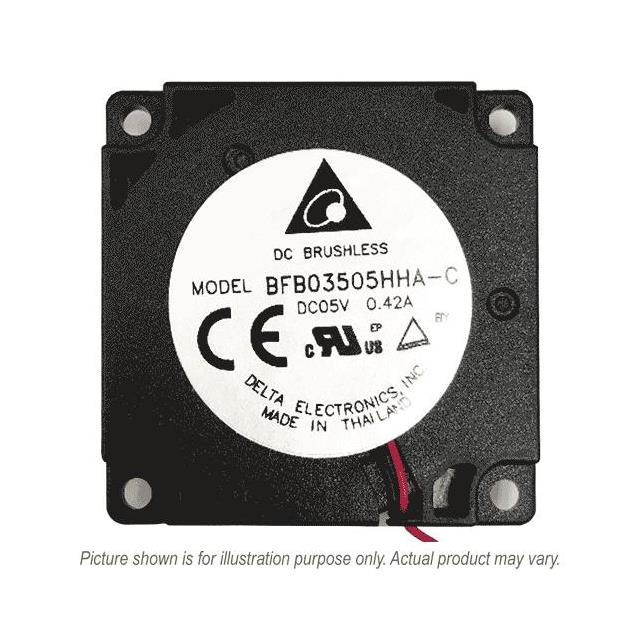

BFB03505HHA-CF00

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 5V 4.5V TO 5.5V 2.12CFM 31DB 35 X 35 X 10MM SENSOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BFB03505HHA-CF00

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 5V 4.5V TO 5.5V 2.12CFM 31DB 35 X 35 X 10MM SENSOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB03505HHA-CF00

Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.15 W
RPM	8500 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	110.3 Pa
Static Pressure	0.443 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	11.34 g
Weight	0.025 lb
Width [y]	10 mm

BFB03505 Series

Part	RPM	Static Pressure	Static Pressure	Bearing Type	Voltage - Rated	Features	Noise	Size / Dimension [z]	Size / Dimension [x]	Lifetime @ Temp.	Material - Blade	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Current Rating (Amps)	Weight	Weight	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Power (Watts)	Termination	Air Flow	Air Flow
Delta Electronics BFB03505MA-CR00	6500 RPM	58.8 Pa	0.236 in H2O	Ball	5 V	Locked Rotor Sensor	26 dB	35 mm	35 mm	30000 Hrs	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	120 mA	11.34 g	0.025 lb	Blower	4.5 V	5.5 V	10 mm	600 mW	3 Wire Leads
Delta Electronics BFB03505HHA-CF00	8500 RPM	110.3 Pa	0.443 in H2O	Ball	5 V	Locked Rotor Protection Speed Sensor (Tach)	31 dB(A)	35 mm	35 mm	30000 Hrs	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	0.23 A	11.34 g	0.025 lb	Blower	4.5 V	5.5 V	10 mm	1.15 W	3 Wire Leads
Delta Electronics BFB03505HHA-A	8500 RPM	110.3 Pa	0.443 in H2O	Ball	5 V		31 dB(A)	35 mm	35 mm	30000 Hrs	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	150 mA	11.34 g	0.025 lb	Blower	4 VDC	5.5 V	10 mm	0.75 W	2 Wire Leads
Delta Electronics BFB03505LA-CF00	5500 RPM	40.6 Pa	0.163 in H2O	Ball	5 V	Locked Rotor Protection Speed Sensor (Tach)	24 dB	35 mm	35 mm	30000 Hrs	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	0.09 A	11.34 g	0.025 lb	Blower	4.5 V	5.5 V	10 mm	450 mW	3 Wire Leads	1.3 CFM	0.036 m³/min
Delta Electronics BFB03505LA-C	5500 RPM	40.6 Pa	0.163 in H2O	Ball	5 V		24 dB	35 mm	35 mm	30000 Hrs	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	0.09 A	11.34 g	0.025 lb	Blower	4.5 V	5.5 V	10 mm	450 mW	2 Wire Leads	1.3 CFM	0.036 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	576	$ 8.82

Description

General part information

BFB03505 Series

Fan Blower 5VDC Square - 35mm L x 35mm H Ball 2.1 CFM (0.059m³/min) 3 Wire Leads
