8402-1"X72YD

Active

3M (TC)

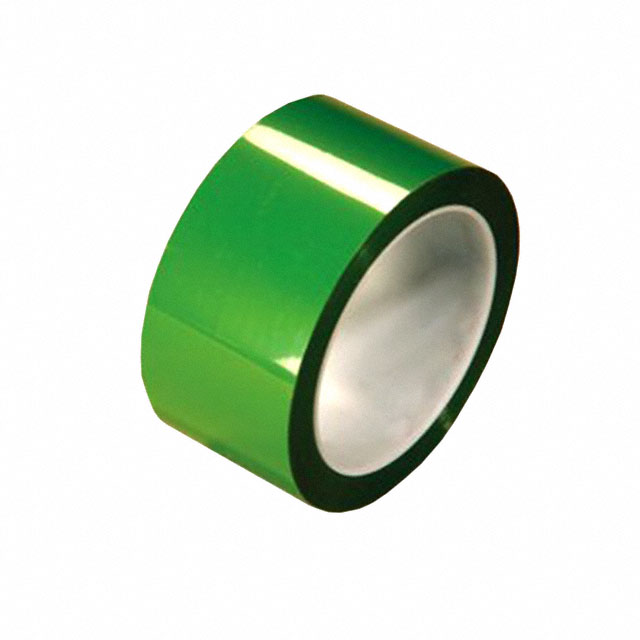

TAPE MASKING TRANS GRN 1"X72YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE MASKING TRANS GRN 1"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	8402-1"X72YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Polyester Film
Color	Translucent - Green
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Masking
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Thickness [custom]	0.0019 "
Thickness [custom]	0.048 mm
Thickness [custom]	1.9 mils
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

Part	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Usage	Backing, Carrier	Width [x]	Width [x]	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Length	Length	Color	Tape Type	Thickness [custom]	Thickness [custom]	Thickness [custom]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]
3M (TC) 8402-1"X72YD	Date of Manufacture	1 mils	0.025 mm	0.001 in	Silicone Thermosetting	General Purpose	Polyester Film	25.4 mm	1 in	24 Months	0.0009 in	0.9 mils	0.023 mm	66 m	216 ft	72 yd	Translucent - Green	Masking	0.0019 "	0.048 mm	1.9 mils	16 °C 60 °F	27 °C 80 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	36	$ 51.13

General part information

Masking Tape Silicone Thermosetting Adhesive Translucent - Green 1.00" (25.40mm) X 216' (66.0m) 72 yds
