C3CPS-1 Series

Part	Pitch - Connector	Cable Termination	Connector Type	Number of Rows	Number of Rows (string_set)	Contact Finish	Usage	Number of Positions	Length	Color	Features	Pitch - Cable	Contact Finish Thickness	Shielding
CW Industries C3CPS-1036G	0.1 in	IDC	Socket to PCB	2 4	2 4	Tin	Board In	10	3 ft	Gray Ribbon	Polarizing Key	0.05 in	100 µin	Unshielded

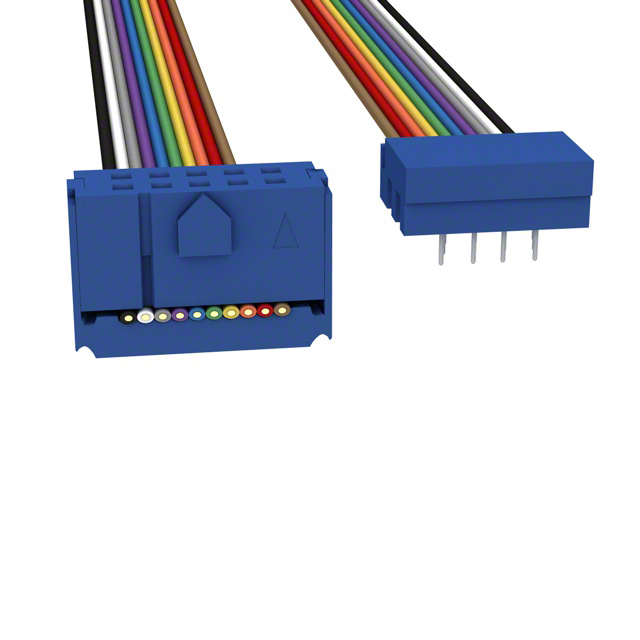

CW Industries C3CPS-1018M	0.1 in	IDC	Socket to PCB	2 4	2 4	Tin	Board In	10	1.5 ft	Multiple Ribbon	Polarizing Key	0.05 in	100 µin	Unshielded
CW Industries C3CPS-1036M	0.1 in	IDC	Socket to PCB	2 4	2 4	Tin	Board In	10	3 ft	Multiple Ribbon	Polarizing Key	0.05 in	100 µin	Unshielded
CW Industries C3CPS-1018G	0.1 in	IDC	Socket to PCB	2 4	2 4	Tin	Board In	10	1.5 ft	Gray Ribbon	Polarizing Key	0.05 in	100 µin	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
