EF24-1 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Features	Configuration	Ingress Protection	Mounting Type	Distance	Connector Type	Fiber Type	Maximum Fiber Ports	Type	SFP/XFP Ports (Count)	SFP/XFP Ports (Type)	Copper Ports	Copper Type (Typical)	Copper Type (Minimum)	Copper Type (Maximum)	MTU (Option)	Fiber Ports	Fiber Mode	Distance	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum
ATOP Technologies EF24-1G-1SFP	70 °C	-10 °C	LFPT	Fixed SFP	IP30	DIN Rail	Varies	RJ45 SFP	SFP	1	Unmanaged	1	SFP	1	100	10	1000

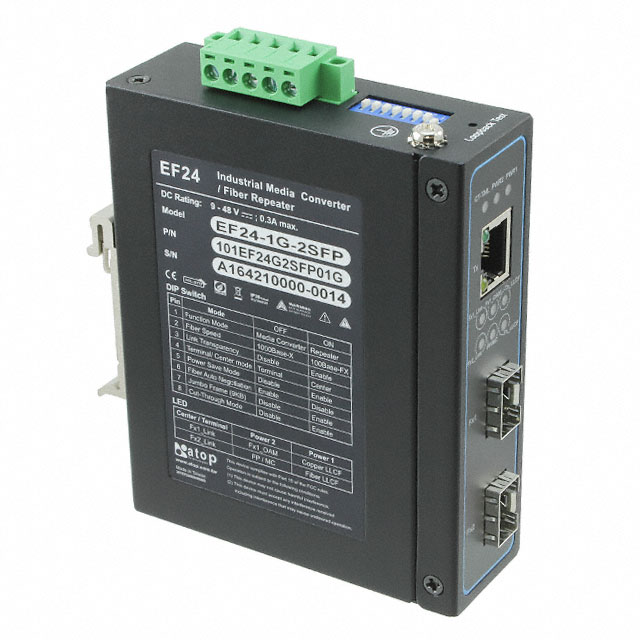

ATOP Technologies EF24-1G-2SFP	70 °C	-10 °C	LFPT	Fixed SFP	IP30	DIN Rail	Varies	RJ45 SFP	SFP	1	Unmanaged	1	SFP	1	100	10	1000	Jumbo
ATOP Technologies EF24-1G-1FS-SC-10	70 °C	-10 °C	LFPT	Fixed	IP30	DIN Rail		RJ45 SC	Gigabit		Unmanaged			1	100	10	1000		1	Singlemode	10 km
ATOP Technologies EF24-1G-1FM-SC-550M	70 °C	-10 °C	LFPT	Fixed	IP30	DIN Rail		RJ45 SC	Gigabit		Unmanaged			1	100	10	1000		1	Multimode	550 m
ATOP Technologies EF24-1G-2FM-SC-550M	70 °C	-10 °C	LFPT	Fixed	IP30	DIN Rail		RJ45 SC	Gigabit		Unmanaged			1	100	10	1000	Jumbo	2	Multimode	550 m	48 V	9 VDC
ATOP Technologies EF24-1G-2FS-SC-10	70 °C	-10 °C	LFPT	Fixed	IP30	DIN Rail		RJ45 SC	Gigabit		Unmanaged			1	100	10	1000	Jumbo	2	Singlemode	10 km	48 V	9 VDC
