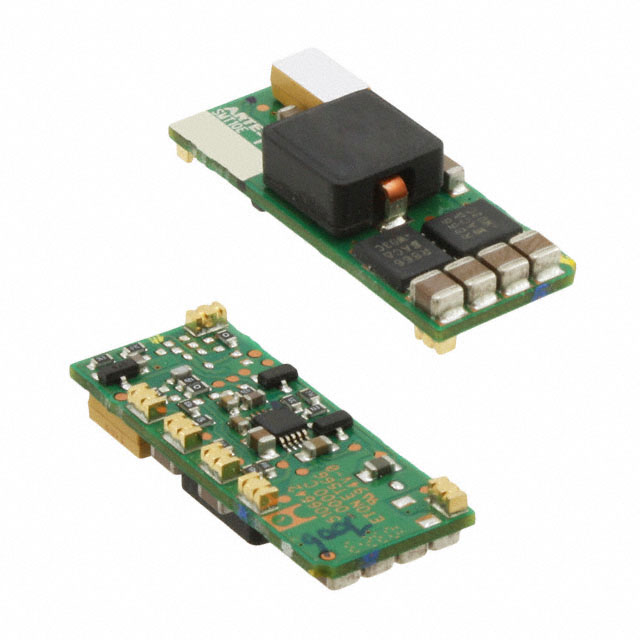

SMT10E-12W3V3J

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.63V 33W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 0.8-3.63V 33W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 0.8-3.63V 33W

Part	Package / Case	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Efficiency
ARTESYN / Advanced Energy SMT10E-12W3V3J	6-SMD Module	1	1.3 "	33 mm	13.5 mm	0.53 in	8.2 mm	0.32 "	Surface Mount	33 W	14 V	OTP, Remote On/Off, SCP	85 °C	-40 °C	0.8 V	3.63 V	ITE (Commercial)	10 VDC	Non-Isolated PoL Module	10 A
ARTESYN / Advanced Energy SMT10E-12W3V3-TJ	6-SMD Module	1	1.3 "	33 mm	13.5 mm	0.53 in	8.2 mm	0.32 "	Surface Mount	33 W	14 V	OTP, Remote On/Off, SCP	85 °C	-40 °C	0.8 V	3.63 V	ITE (Commercial)	10 VDC	Non-Isolated PoL Module	10 A	94 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.63V 10A 10V - 14V Input
