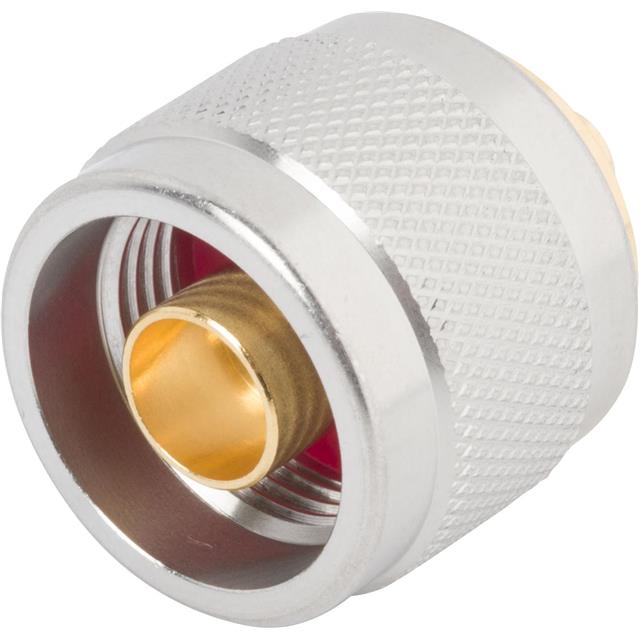

Specification	SF6511-60010

Body Material	Stainless Steel
Cable Group	RG-405
Cable Group Diameter (Default)	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

PN Series

Part	Center Contact Plating	Body Material	Dielectric Material	Mating Cycles	Impedance	Cable Group Diameter (Default)	Cable Group	Fastening Type	Connector Type	Mounting Type	Connector Style	Number of Ports	Center Contact Material	Contact Termination	Shield Termination	Housing Color
McGill Microwave Systems SF6511-60010	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	500 cycles	50 Ohm	0.085 in	RG-405	Threaded	Male Pin Plug	Free Hanging (In-Line)	PN	1	Brass	Solder	Solder	Silver
