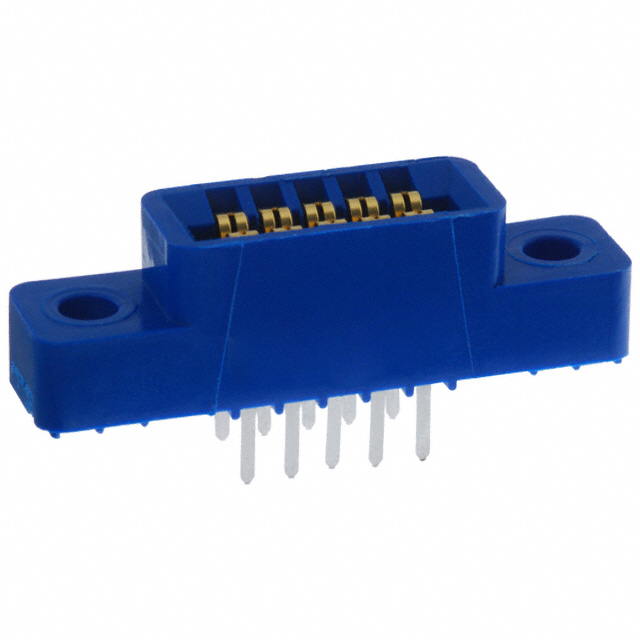

EBC05DRXH

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

EBC05DRXH

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC05DRXH

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Flange Feature	Unthreaded, Top Mount Opening
Flange Feature [diameter]	0.125 in
Flange Feature [diameter]	3.18 mm
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC05 Series

Part	Number of Rows	Card Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Material - Insulation	Number of Positions	Contact Finish	Features	Mounting Type	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Termination	Gender	Read Out	Flange Feature	Flange Feature	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Color	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions EBC05MMRD	2	Fits Female Edgecards	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold	Card Extender	Board Edge Straddle Mount	5	2.54 mm	0.1 in	Solder	Male	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	125 °C	-65 ░C
Sullins Connector Solutions EBC05DEYN	2	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Solder	Female	Dual				125 °C	-65 ░C	Cantilever
Sullins Connector Solutions EBC05DRTH-S93	2	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.093 in	2.36 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Solder	Female	Dual	Top Mount Opening Unthreaded			125 °C	-65 ░C	Full Bellows	Blue	0.125 in	3.18 mm
Sullins Connector Solutions EBC05DRXH	2	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Solder	Female	Dual	Top Mount Opening Unthreaded			125 °C	-65 ░C	Full Bellows	Blue	0.125 in	3.18 mm
Sullins Connector Solutions EBC05MMVD-S189	2	Fits Female Edgecards	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole Right Angle	5	2.54 mm	0.1 in	Solder	Male	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	125 °C	-65 ░C
Sullins Connector Solutions EBC05MMDN	2	Fits Female Edgecards	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole Right Angle	5	2.54 mm	0.1 in	Solder	Male	Dual				125 °C	-65 ░C
Sullins Connector Solutions EBC05DRTS	2	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Solder	Female	Dual	Side Mount Opening Unthreaded			125 °C	-65 ░C	Full Bellows	Blue	0.125 in	3.18 mm
Sullins Connector Solutions EBC05MMMD	2	Fits Female Edgecards	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Wire Wrap	Male	Dual	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	125 °C	-65 ░C
Sullins Connector Solutions EBC05DRTN	2	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)	10	Gold		Through Hole	5	2.54 mm	0.1 in	Solder	Female	Dual				125 °C	-65 ░C	Full Bellows	Blue
Sullins Connector Solutions EBC05HEYH	1	Non Specified - Dual Edge	Phosphor Bronze	10 Áin	0.25 Ám	0.062 in	1.57 mm	Polybutylene Terephthalate (PBT)		Gold		Through Hole		2.54 mm	0.1 in	Solder	Female	Single	Top Mount Opening Unthreaded			125 °C	-65 ░C	Cantilever		0.125 in	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.43
		10	$ 3.12
		30	$ 2.95
		40	$ 2.88
		80	$ 2.75
		230	$ 2.40
		440	$ 2.34
		950	$ 1.99
		2400	$ 1.85

Description

General part information

EBC05 Series

10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue

Documents

Technical documentation and resources

No documents available
