Q-2703G000M108i

Active

Amphenol Custom Cable

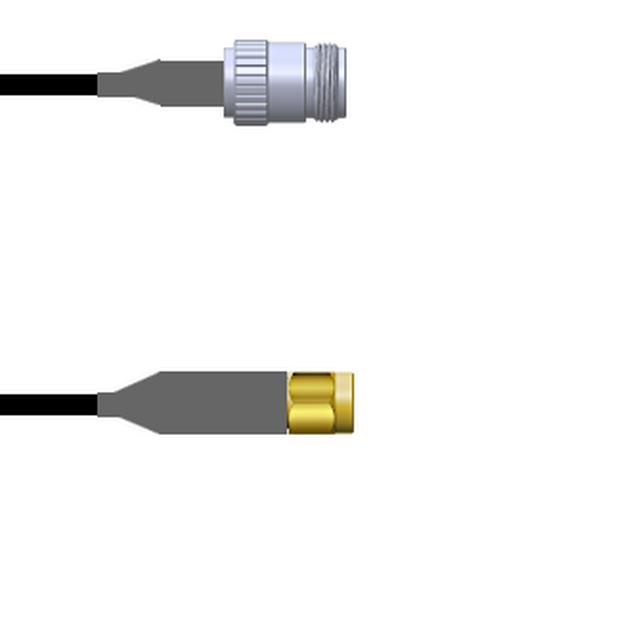

CBL ASSY SMA-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2703G000M108i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2703G000M108i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2703G0 Series

Part	Cable Type	2nd Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Features	Overall Impedance	Length	Length	1st Connector	2nd Connector	Style	1st Contact Gender	Color	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-2703G000M.75M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	29.53 "	750 mm	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2703G000M108i	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	108 in	2.7 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-2703G000M036i	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	36 in	91.44 cm	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2703G000M003M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	118.1 in	3 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-2703G000M002M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	78.7 in	2 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-2703G000M1.5M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	59.1 in	1.5 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-2703G000M012i	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	12 "	304.8 mm	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2703G000M084i	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	84 in	2.1 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-2703G000M001M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	39.4 in	1 m	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-2703G000M0.5M	LMR 240	Female	6000 MHz	Free Hanging (In-Line)	Shielded	50 Ohms	19.69 "	50 cm	SMA Plug	N-Type Jack	SMA to N-Type	Male	Black	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 163.37
		25	$ 160.22
		50	$ 157.07
		100	$ 153.92
		250	$ 150.76

Description

General part information

Q-2703G0 Series

Cable Assembly Coaxial SMA to N-Type LMR 240 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
