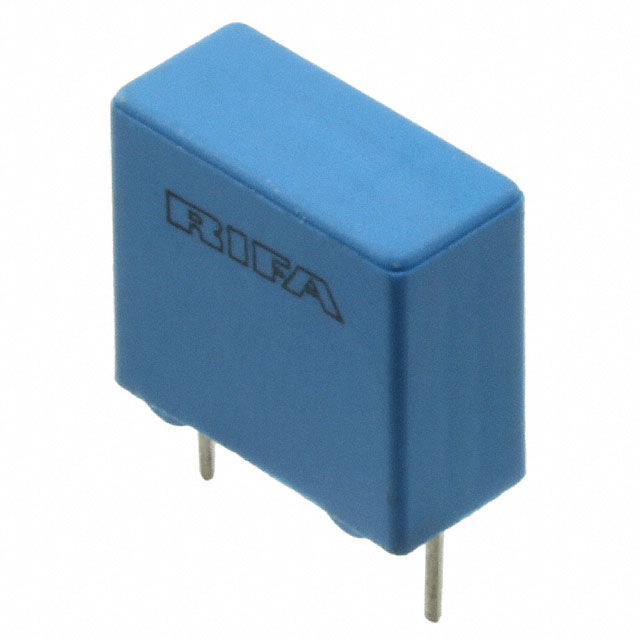

PHE426HB7100JR06

Active

KEMET

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 1 ΜF, ± 5%, 160 V, 250 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

PHE426HB7100JR06

Active

KEMET

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 1 ΜF, ± 5%, 160 V, 250 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE426HB7100JR06

Applications	High Pulse, DV/DT, DC Filtering, High Frequency, Switching, DC Link
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.689 in
Height - Seated (Max) [Max]	17.5 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.374 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

PHE426 Series

Part	Capacitance	Dielectric Material	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]
KEMET PHE426HB7100JR06	1 µF	Metallized Polypropylene (PP)	15 mm	0.591 in	160 V	0.689 in	17.5 mm	5 %	Radial	0.709 in	9.5 mm	0.374 in	18 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	250 V	PC Pins
KEMET PHE426MK4330JR05	3300 pF	Metallized Polypropylene (PP)	7.5 mm	0.295 in	250 V			5 %	Radial	0.394 "	4 mm	0.157 in	10 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C		PC Pins	8 mm	0.315 in
KEMET PHE426DJ5330FR17T0	0.033 çF	Metallized Polypropylene (PP)	5 mm	0.197 in	63 V			1 %	Radial		0.138 in 3.5 mm		0.283 in 7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	100 V	PC Pins	8 mm	0.315 in
KEMET PHE426KD6470JR06L2	0.47 µF	Metallized Polypropylene (PP)	22.5 mm	0.886 in	220 V	0.63 in	16 mm	5 %	Radial		0.315 in		1.024 in	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	400 V	PC Pins			8 mm	26 mm
KEMET PHE426HD7470JR06L2	4.7 µF	Metallized Polypropylene (PP)	22.5 mm	0.886 in	160 V	0.965 "	24.5 mm	5 %	Radial	1.024 in	15.5 mm	0.61 in	26 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	250 V	PC Pins
KEMET PHE426HJ4270JR05	2700 pF	Metallized Polypropylene (PP)	5 mm	0.197 in	160 V			5 %	Radial	0.283 in		0.098 in	7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	250 V	PC Pins	6.5 mm	0.256 in	2.5 mm
KEMET PHE426DJ4390JR05	3900 pF	Metallized Polypropylene (PP)	5 mm	0.197 in	63 V			5 %	Radial	0.283 in		0.098 in	7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	100 V	PC Pins	6.5 mm	0.256 in	2.5 mm
KEMET PHE426DJ5820JR05	0.082 µF	Metallized Polypropylene (PP)	5 mm	0.197 in	63 V	0.394 in	10 mm	5 %	Radial	0.283 in	5 mm	0.197 "	7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	100 V	PC Pins
KEMET PHE426DJ5330JR05	0.033 çF	Metallized Polypropylene (PP)	5 mm	0.197 in	63 V			5 %	Radial		0.138 in 3.5 mm		0.283 in 7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	100 V	PC Pins	8 mm	0.315 in
KEMET PHE426DJ4270JR05	2700 pF	Metallized Polypropylene (PP)	5 mm	0.197 in	63 V			5 %	Radial	0.283 in		0.098 in	7.2 mm	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	105 ░C	-55 °C	100 V	PC Pins	6.5 mm	0.256 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	82	$ 1.22
		100	$ 1.16
Digikey	Bulk	1	$ 1.93
		10	$ 1.48
		50	$ 1.36
		100	$ 1.13
		500	$ 0.91
		1000	$ 0.79
		2500	$ 0.76
		5000	$ 0.74
Newark	Each	1	$ 2.11
		10	$ 1.40
		25	$ 1.32
		50	$ 1.24
		100	$ 1.09
		500	$ 0.90
		1000	$ 0.81
		2500	$ 0.78

Description

General part information

PHE426 Series

1 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
