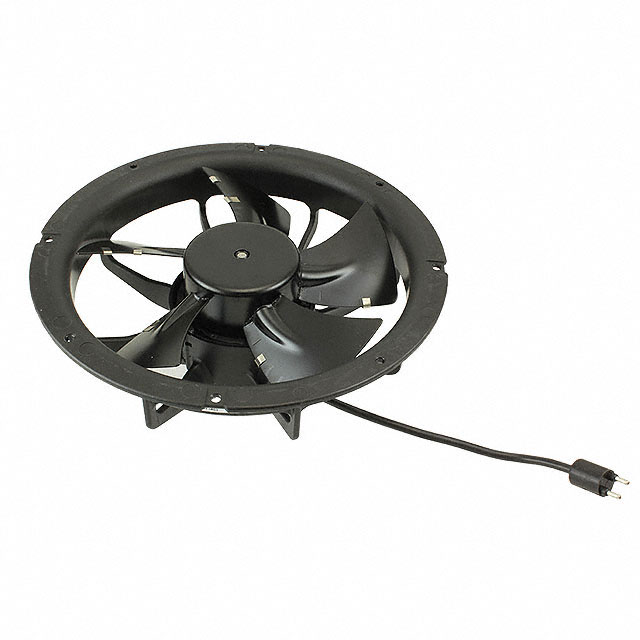

Specification	W1G200-EA95-68

Approval Agency	UL, CSA
Bearing Type	Ball
Current Rating	150 mA
Fan Type	Tubeaxial
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Material - Blade	Steel
Material - Frame	Polypropylene (PP)
Power (Watts)	10 W
RPM	1300 RPM
Size / Dimension Diameter	220 mm
Size / Dimension Shape	Round
Termination	2 Position Rectangular Connector
Termination Leads Count	2
Termination Type	Position Rectangular Connector
Voltage - Rated	115 V
Width	76.4 mm

W1G200 Series

Part	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Material - Blade	Power (Watts)	Width	Termination Leads Count	Termination Type	Termination	Static Pressure	Bearing Type	Size / Dimension Shape	Size / Dimension Diameter	Fan Type	Voltage - Rated	Ingress Protection	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Features	RPM	Material - Frame	Noise	Air Flow	Weight	Ingress Protection IP Rating	Ingress Protection Description	Size / Dimension Length	Size / Dimension Height	Lifetime
ebm-papst Inc. S1G200-AH01-52	1.3 A	36 VDC	57 VDC	Steel	55 W	69 mm	4 leads	Wire Leads	4 Wire Leads	0.482 in H2O	Ball	Round	200 mm	Tubeaxial	48 VDC	IP42	CSA UL	-25 °C	60 °C	PWM Control Speed Sensor (Tach)	2950 RPM
ebm-papst Inc. W1G200-EA95-71											Ball			Tubeaxial
ebm-papst Inc. W1G200-CI01-52		36 VDC	56 VDC	Steel	55 W	80 mm	2 leads	Wire Leads	2 Wire Leads		Ball	Round	280 mm	Tubeaxial	48 VDC		CSA UL					Aluminum	60 dB	588 CFM	3.3 lbs
ebm-papst Inc. W1G200-CI77-52		16 VDC	28 V	Steel	55 W	80 mm	2 leads	Wire Leads	2 Wire Leads		Ball	Round	280 mm	Tubeaxial	24 VAC		CSA UL					Aluminum	60 dB	588 CFM	3.3 lbs
ebm-papst Inc. W1G200-EA95-68	150 mA			Steel	10 W	76.4 mm	2	Position Rectangular Connector	2 Position Rectangular Connector		Ball	Round	220 mm	Tubeaxial	115 V		CSA UL				1300 RPM	Polypropylene (PP)				IP54	Dust Protected Water Resistant
ebm-papst Inc. W1G200-CH01-52		36 VDC	56 VDC	Steel	55 W	80 mm	2 leads	Wire Leads	2 Wire Leads		Ball	Round	280 mm	Tubeaxial	48 VDC		CSA UL					Aluminum	60 dB	588 CFM	3.3 lbs
ebm-papst Inc. W1G200-EC91-45	0.24 A			Nylon PA Polyamide	31 W	78.5 mm	3	Wire Leads with Splice Terminals	3 Wire Leads with Splice Terminals	0.22 in H2O	Ball	Round	250 mm	Tubeaxial	230 VAC		CCC CE CSA EAC UL VDE	-22 °F	122 °F	Thermal Overload Protector (TOP)	1500 RPM	Polypropylene (PP)				IP55	Dust Protected Water Resistant
ebm-papst Inc. W1G200-HH01-52		36 VDC	57 VDC	Steel	45 W	80 mm			Terminal Block		Ball	Square		Tubeaxial	48 VDC		CCC CSA EAC UL	-25 °C	60 °C		2750 RPM	Aluminum	60 dB	591.5 CFM	4.7 lbs			225 mm	225 mm	57000 Hrs
