DMS-20LCD-1-DCM-C - DMS-20LCD-1-DCM-C

DMS-20LCD-1-DCM-C

Active
Murata Power Solutions Inc.

VOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, 8V TO 50V, 3 DIGITS, 8 VDC TO 50 VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
DMS-20LCD-1-DCM-C - DMS-20LCD-1-DCM-C

DMS-20LCD-1-DCM-C

Active
Murata Power Solutions Inc.

VOLTMETER, DMS-20LCD SERIES, DC VOLTAGE, 8V TO 50V, 3 DIGITS, 8 VDC TO 50 VDC

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationDMS-20LCD-1-DCM-CDMS-20LCD Series
Display Characters - Height-9.4 mm
Display Characters - Height-0.37 in
Display Type-LCD - Black Characters, LCD - Black Characters, Aqua Backlight
Features-Bezel Sold Separately
Measuring Range-0.2 - 200 V
Measuring Range--200 - 18 V
Measuring Type-Voltage
Mounting Type-Panel Mount - Bezel
null-
Number of Characters Per Row-3 - 3.5
Operating Temperature-60 °C
Operating Temperature-0 °C
Panel Cutout Dimensions-33.93 mm
Panel Cutout Dimensions-21.29 mm
Termination Style-Screw Terminal, PC Pin
Type-Voltmeter
Voltage - Supply-5 - 24 V
Voltage - Supply-Loop Power
Weight-0.024 - 0.031 lb
Weight-10.89 - 14.06 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 34.65
5$ 32.92
10$ 31.18
25$ 28.88
50$ 26.57
100$ 25.60
NewarkEach 1$ 36.04
5$ 34.24
10$ 32.44
25$ 30.04
50$ 27.63
100$ 26.62

DMS-20LCD Series

VOLTMETER 200V LCD PANEL MOUNT

PartTypeNumber of Characters Per RowWeightWeightTermination StyleMeasuring Range [Max]Measuring Range [Min]Panel Cutout Dimensions [x]Panel Cutout Dimensions [y]Measuring TypeMounting TypeVoltage - SupplyDisplay TypeDisplay Characters - HeightDisplay Characters - HeightOperating Temperature [Max]Operating Temperature [Min]Voltage - SupplyFeatures
Murata Power Solutions Inc.
DMS-20LCD-3-5-C
Voltmeter
3.5
0.024 lb
10.89 g
Screw Terminal
200 V
-200 V
33.93 mm
21.29 mm
Voltage
Panel Mount - Bezel
5 V
LCD - Black Characters
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-2-DCM-C
Voltmeter
3
0.031 lb
14.06 g
Screw Terminal
90 VDC
18 VDC
33.93 mm
21.29 mm
Voltage
Panel Mount - Bezel
LCD - Black Characters
9.4 mm
0.37 in
60 °C
0 °C
Loop Power
Murata Power Solutions Inc.
DMS-20LCD-2-5-C
Voltmeter
3.5
0.025 lb
11.34 g
PC Pin
33.93 mm
21.29 mm
Voltage
5 V
LCD - Black Characters
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-0-9-C
Voltmeter
3.5
0.025 lb
11.34 g
PC Pin
0.2 VDC
-200 mV
33.93 mm
21.29 mm
Voltage
9 V
LCD - Black Characters
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-0-9-C
Murata Power Solutions Inc.
DMS-20LCD-1-DCM-C
Murata Power Solutions Inc.
DMS-20LCD-0-9B-C
Voltmeter
3.5
0.024 lb
10.89 g
Screw Terminal
0.2 VDC
-200 mV
33.93 mm
21.29 mm
Voltage
Panel Mount - Bezel
9 V
LCD - Black Characters, Aqua Backlight
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-0-5B-C
Voltmeter
3.5
0.025 lb
11.34 g
PC Pin
0.2 VDC
-200 mV
33.93 mm
21.29 mm
Voltage
5 V
LCD - Black Characters, Aqua Backlight
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-3-9B-C
Voltmeter
3.5
0.024 lb
10.89 g
Screw Terminal
200 V
-200 V
33.93 mm
21.29 mm
Voltage
Panel Mount - Bezel
9 V
LCD - Black Characters, Aqua Backlight
9.4 mm
0.37 in
60 °C
0 °C
Murata Power Solutions Inc.
DMS-20LCD-1-9B-C
Voltmeter
3.5
0.024 lb
10.89 g
Screw Terminal
2 V
-2 V
33.93 mm
21.29 mm
Voltage
Panel Mount - Bezel
9 V
LCD - Black Characters, Aqua Backlight
9.4 mm
0.37 in
60 °C
0 °C

Description

General part information

DMS-20LCD Series

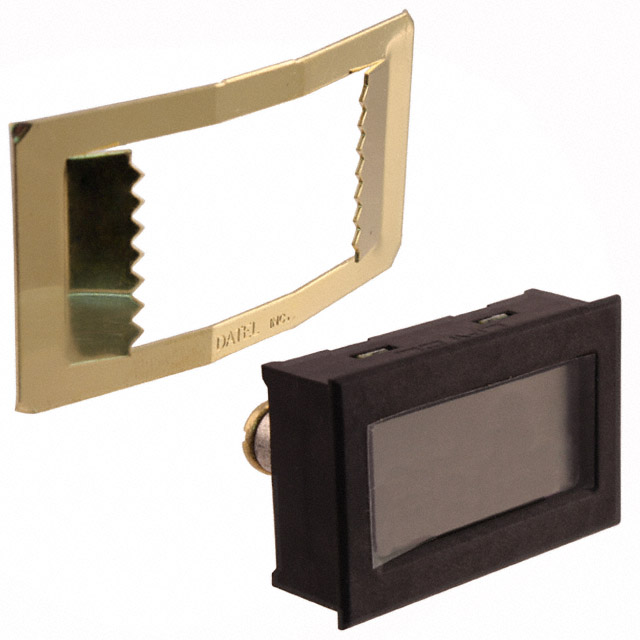

The DMS-20LCD-1-DCM-C is a Self-powered LCD Display 2-wire DC Voltage Monitor with built-in VDC annunciator, can be easily read from 10ft. Apply power to the two rear terminals and the unit is operational. It utilizes a precision analogue-to-digital converter and ultra-stable passive components to achieve excellent performance over the operating temperature range of 0 to 60°C. A rugged, ABS plastic package provides excellent protection against shock and vibration.
