C5804.41.01

Active

Prysmian Group

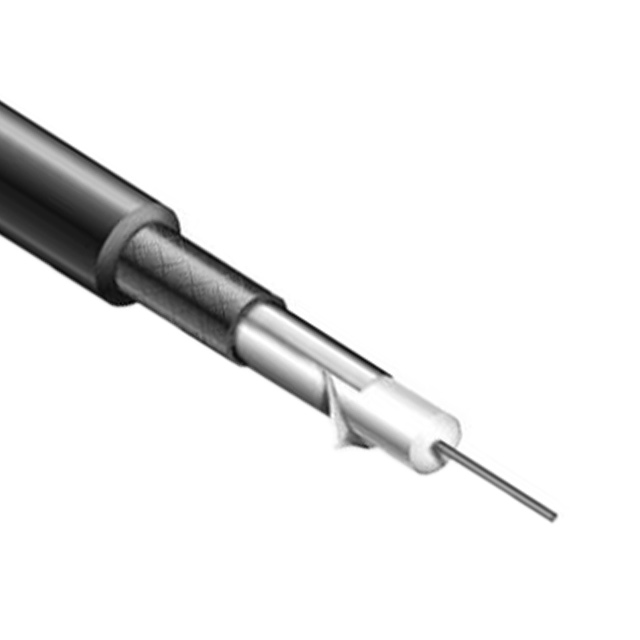

CABLE COAXIAL RG6 18AWG

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG6 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	C5804.41.01

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	4.5 mm
Dielectric Diameter [diameter]	0.177 "
Dielectric Material	Solid Polyethylene (PE)
Features	MoistureGuard™
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	304.8 m, 15.24 m
Length	1000 ft, 50 ft
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	60%, 100%
Shield Material	Flexfoil®, Aluminum
Shield Type	Foil, Braid
Usage	Direct Burial, Flooded
VoP, Velocity of Propagation	85
Wire Gauge	18 AWG, 18 AWG
Wire Gauge	0.82 mm˛

Part	Wire Gauge	Length [x]	Length [x]	Conductor Strand	Cable Group	Shield Type	Shield Coverage	Usage	Shield Material	Dielectric Material	Features	VoP, Velocity of Propagation	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Wire Gauge	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Cable Type
Prysmian Group C5804.41.01	18 AWG 18 AWG	100 ft	30.48 m	Solid	RG-6	Braid Foil	100% 60%	Direct Burial Flooded	Flexfoil® Aluminum	Solid Polyethylene (PE)	MoistureGuard™	85	15.24 m 304.8 m	50 ft 1000 ft	4.5 mm	0.177 "	75 Ohms	0.82 mm˛	Polyethylene (PE)	Black	6.86 mm	0.27 in	Copper Coated Steel	Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 18 AWG (0.82mm²) RG-6 1000.0' (304.80m) 75 Ohms
