22-221.011

Active

EAO

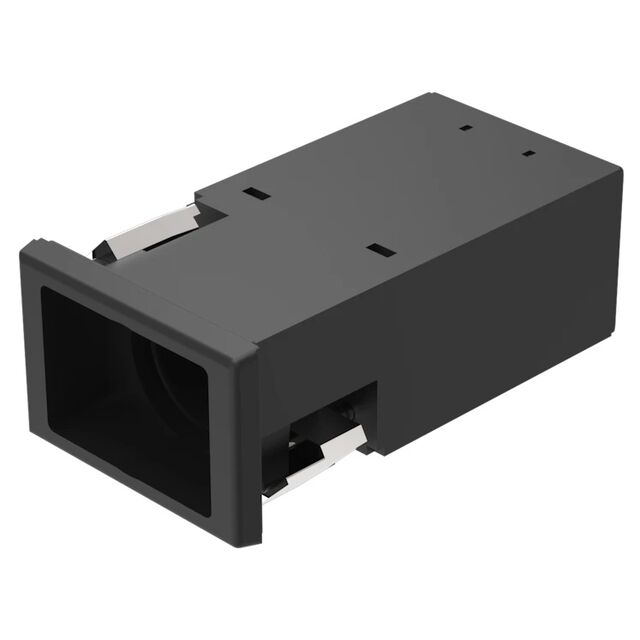

SWITCH PB SPST-NO 10A 400V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 10A 400V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	22-221.011	22-221 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)	Rectangular, Button (Not Included)
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	10 A	10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	Off-On	Off-On
Termination Style	Screw Terminal	Screw Terminal, Quick Connect - 0.250" (6.3mm)
Type	Standard	Standard
Voltage Rating - AC	400 V	400 V

SWITCH PB SPST-NO 10A 400V

Part	Voltage Rating - AC	Ingress Protection	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Current Rating (Amps)	Mounting Type	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Switch Function	Mechanical Life	Termination Style
EAO 22-221.011	400 V	IP65 - Dust Tight, Water Resistant	SPST-NO	-25 °C	85 °C	No Marking	10 A	Panel Mount, Front	Rectangular, Button (Not Included)	30 mm	22 mm	Standard	Off-On	1000000 Cycles	Screw Terminal
EAO 22-221.014	400 V	IP65 - Dust Tight, Water Resistant	SPST-NO	-25 °C	85 °C	No Marking	10 A	Panel Mount, Front	Rectangular, Button (Not Included)	30 mm	22 mm	Standard	Off-On	1000000 Cycles	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
