PXAE213708NB-V1-R2
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 29V 8HB2SOF
PXAE213708NB-V1-R2
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 29V 8HB2SOF
Description
General part information
PXAE213708 Series
RF Mosfet 29 V 750 mA 2.11GHz ~ 2.18GHz 16dB 54W PG-HB2SOF-8-1
Technical Specifications
Parameters and characteristics for this part
| Specification | PXAE213708NB-V1-R2 |
|---|---|
| Current - Test | 750 mA |
| Current Rating | 10 µA |
| Frequency (Max) | 2.18 GHz |
| Frequency (Min) | 2.11 GHz |
| Gain | 16 dB |
| Mounting Type | Surface Mount |

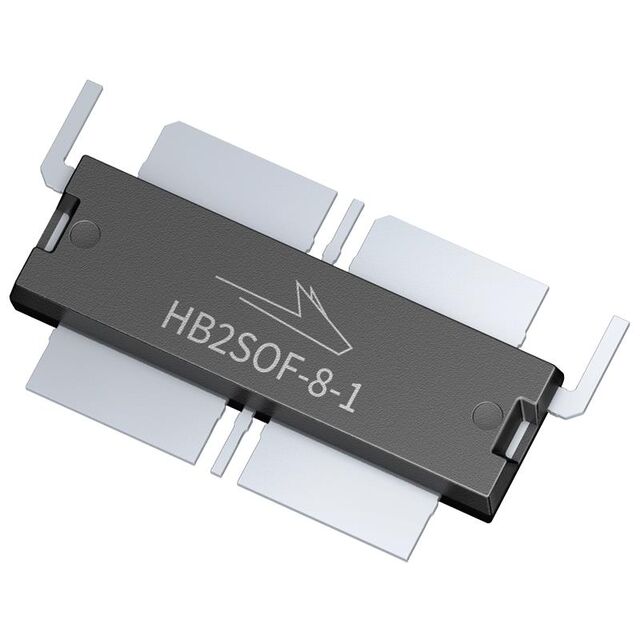

| Package / Case | PG-HB2SOF-8-1 |
| Package Name | PG-HB2SOF-8-1 |
| Power - Output | 54 W |
| Technology | LDMOS |
| Voltage - Rated | 65 V |
| Voltage - Test | 29 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
