CLH-112-F-D-PE

Active

Samtec Inc.

CONN RCPT 24POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 24POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CLH-112-F-D-PE

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Contact Type	Connector Type	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Contact Material
Samtec Inc. CLH-112-F-D-PE	125 °C	-65 ░C	Solder	0.09 "	2.29 mm	Through Hole	Tin	0.1 in	2.54 mm	All	24	2	Square	Push-Pull	3 µin	0.076 µm	3.56 mm	0.14 in	2.54 mm	0.1 in	Black	Female Socket	Pass Through Receptacle	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

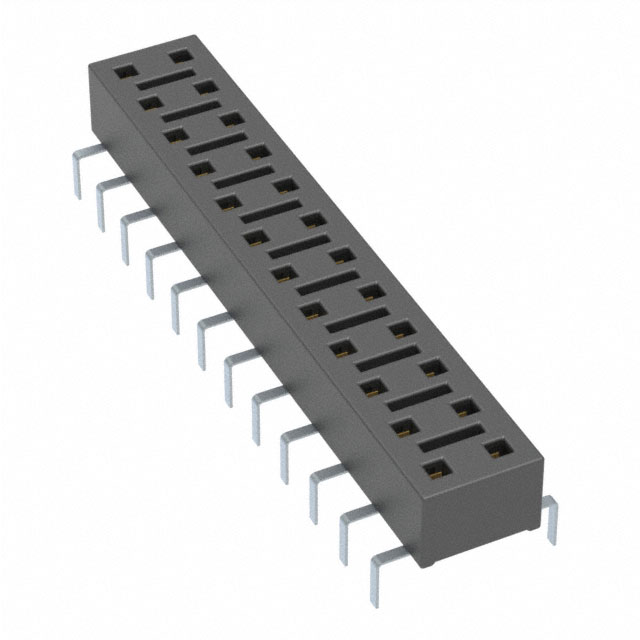

24 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Through Hole Gold
