1139 1"X60YD PLS

Active

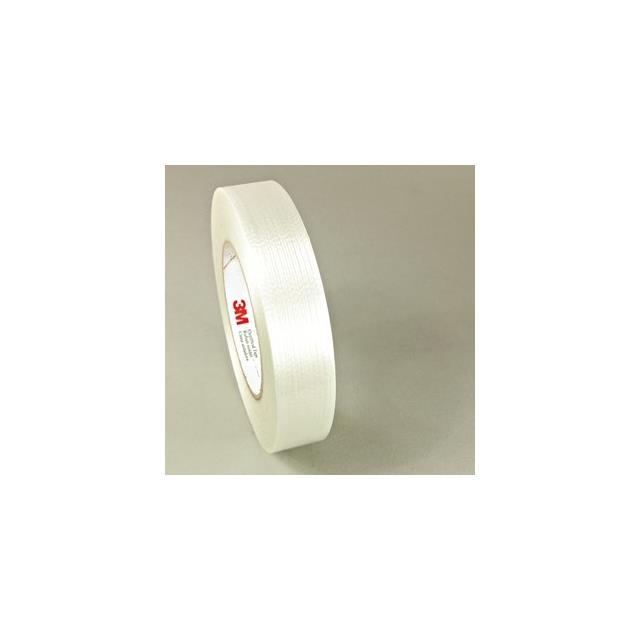

TAPE FILAMENT CLEAR 1"X60YDS

Search across all available documentation for this part.

Active

TAPE FILAMENT CLEAR 1"X60YDS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	36	$ 37.92

General part information

Filament Tape Acrylic Adhesive Clear 1.00" (25.40mm) X 180' (55.0m) 60 yds

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1139 1"X60YD PLS	1139 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Clear	Clear
Length	60 yds	60 yds
Length	55 m	55 m
Length	180 ft	180 ft
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	Filament	Filament
Temperature Range	155 °C	155 °C
Temperature Range	311 °F	311 °F
Thickness	0.0065 in	0.0065 in
Thickness	6.5 mils	6.5 mils
Thickness	0.165 mm	0.165 mm
Thickness - Adhesive	1 mils	1 mils
Thickness - Adhesive	0.025 mm	0.025 mm
Thickness - Adhesive	0.001 in	0.001 in
Thickness - Backing, Carrier	5.4 mils	5.4 mils
Thickness - Backing, Carrier	0.14 mm	0.14 mm
Thickness - Backing, Carrier	0.0054 "	0.0054 "
Usage	Wrapping, Insulating, Holding	Wrapping, Insulating, Holding
Width	-	0.5 in
Width	-	12.7 mm
Width	-	0.5 in
Width [x]	25.4 mm	25.4 mm
Width [x]	1 in	1 in

TAPE FILAMENT CLEAR 1"X60YDS

Part	Temperature Range	Temperature Range	Tape Type	Usage	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Adhesive	Length	Length	Length	Thickness	Thickness	Thickness	Width [x]	Width [x]	Backing, Carrier	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Width	Width
3M 1139 1"X60YD PLS	155 °C	311 °F	Filament	Holding, Insulating, Wrapping	60 Months	5.4 mils	0.14 mm	0.0054 "	Clear	Acrylic	60 yds	55 m	180 ft	0.0065 in	6.5 mils	0.165 mm	25.4 mm	1 in	Polyester Film	Date of Manufacture	1 mils	0.025 mm	0.001 in
3M 1139-1/2"X60YDS	155 °C	311 °F	Filament	Holding, Insulating, Wrapping	60 Months	5.4 mils	0.14 mm	0.0054 "	Clear	Acrylic	60 yds	55 m	180 ft	0.0065 in	6.5 mils	0.165 mm			Polyester Film	Date of Manufacture	1 mils	0.025 mm	0.001 in	0.5 in	12.7 mm	0.5 in
