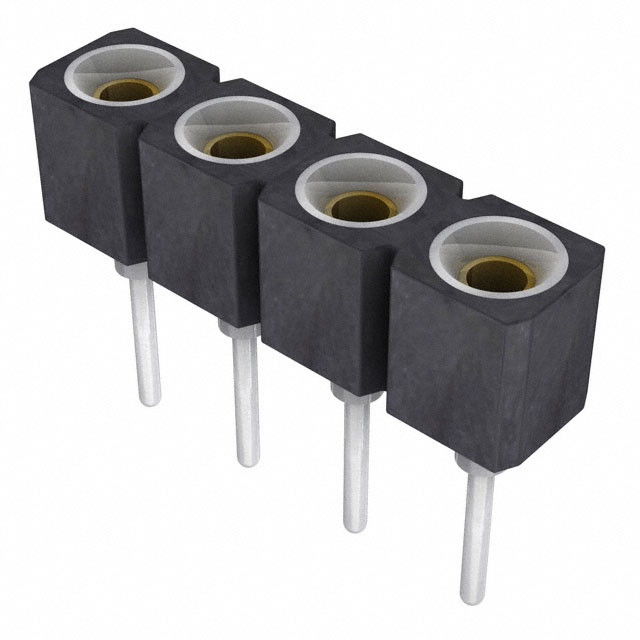

310-47-104-41-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

Documents310, 311, 315 Series (in.)~Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	310-47-104-41-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	100 V, 150 VDC

310-47 Series

Part	Current Rating (Amps)	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Material	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Fastening Type	Insulation Material	Contact Finish - Mating	Contact Shape	Voltage Rating	Termination	Contact Finish Thickness - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 310-47-143-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	43	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-118-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	18	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-124-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	24	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-105-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm		Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-104-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	4	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-159-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	59	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-129-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	29	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-109-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	9	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-140-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	40	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 310-47-120-41-001000	3 A	Receptacle	Black	200 µin	5.08 µm	20	Beryllium Copper	UL94 V-0	All	-55 °C	125 °C	Through Hole	0.1 in	2.54 mm	1	Tin	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Circular	100 V 150 VDC	Solder	Flash	Female Socket	3.18 mm	0.125 in
