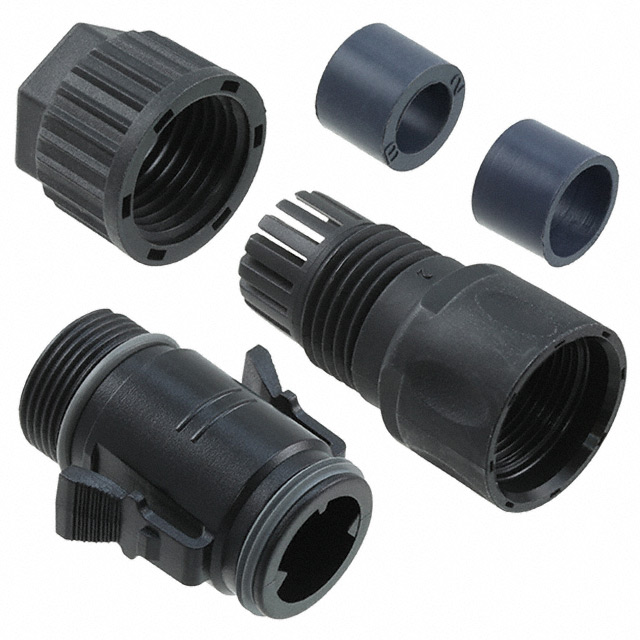

CB-04BMMC-RL7001

Active

Amphenol LTW

CONN PLUG HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG HSNG MALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04BMMC-RL7001

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock, Snap-In
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Modified Polyphenylene Ether (mPPE)
Shell Size - Insert	C
Shielding	Unshielded
Type	For Male Pins

Part	Ingress Protection	Note	Shielding	Housing Color	Mounting Type	Shell Material	Orientation	Material Flammability Rating	Shell Size - Insert	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Number of Positions	Connector Type	Type	Contact Type	Contact Shape
Amphenol LTW CB-04BMMC-RL7001	IP67 - Dust Tight Waterproof	Contacts Not Included	Unshielded	Black	Free Hanging (In-Line)	Modified Polyphenylene Ether (mPPE)	Keyed	UL94 V-0	C	Latch Lock Snap-In	Backshell	-40 °C	105 ░C	16	4	Plug Housing	For Male Pins	Crimp	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
