NBB15-30GM50-E2

Active

Pepperl+Fuchs, Inc.

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Find alt

Alpha

NBB15-30GM50-E2

Active

Pepperl+Fuchs, Inc.

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

NBB15 Series

The NBB15-30GM50-E2 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.

Technical Specifications

Parameters and characteristics for this part

Specification	NBB15-30GM50-E2

Indicator	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

NBB15 Series

Part	Sensing Distance	Termination Style	Ingress Protection	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Indicator	Shielding	Material - Body	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Sensor Type	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)

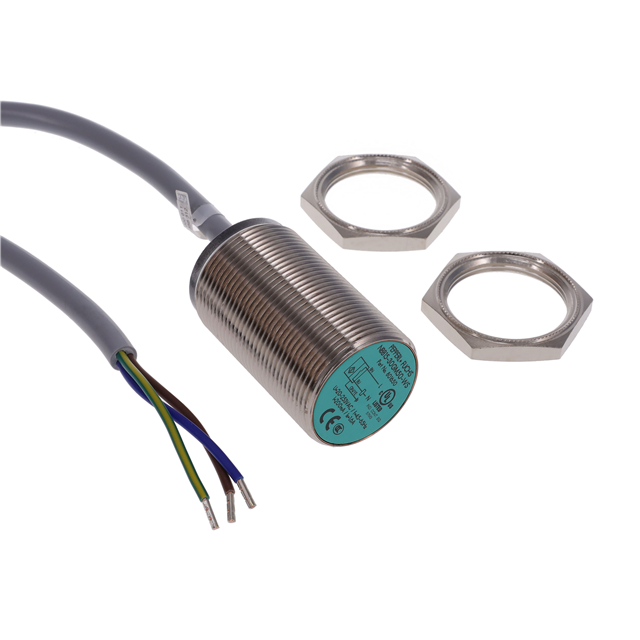

Pepperl+Fuchs, Inc. NBB15-30GM50-WS	0.591 "	Cable	IP67	253 V	20 VDC	LED	Unshielded	Nickel-Plated Brass	2-Wire SCR-NO	70 °C	-25 °C	Cylinder Threaded - M30	Inductive

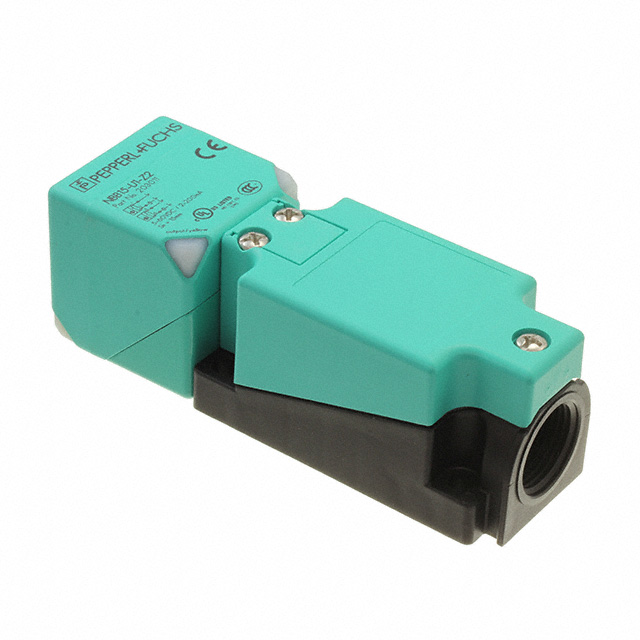

Pepperl+Fuchs, Inc. NBB15-U1-Z2	0.591 "		IP68 IP69K	60 V	5 V	LED	Unshielded	Polyamide (PA)	2-Wire NO SCR-NC	85 °C	-25 °C	Module	Inductive

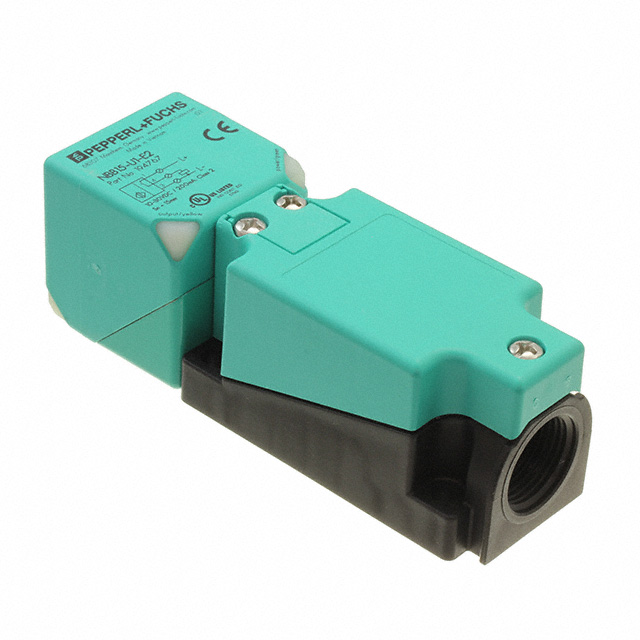

Pepperl+Fuchs, Inc. NBB15-U1-E2	0.591 "		IP68 IP69K	30 VDC	10 VDC	LED	Unshielded	Polyamide (PA)	3-Wire PNP-NO	85 °C	-25 °C	Module	Inductive

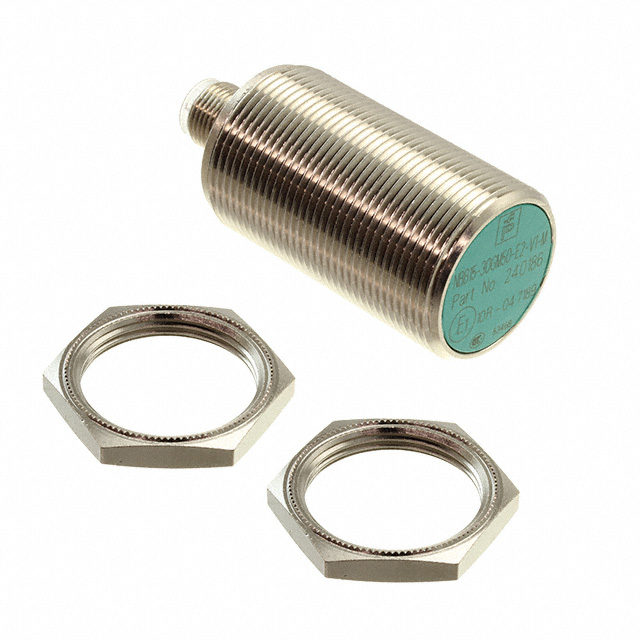

Pepperl+Fuchs, Inc. NBB15-30GM50-E2-V1-M	0.591 "	Connector	IP68 IP69K	60 V	5 V	LED	Unshielded	Nickel-Plated Brass	3-Wire PNP-NO	85 °C	-40 °C	Cylinder Threaded - M30	Inductive
Pepperl+Fuchs, Inc. NBB15-30GM50-E2	0.591 "	Cable	IP67	30 VDC	10 VDC	LED	Unshielded	Nickel-Plated Brass	3-Wire PNP-NO	70 °C	-25 °C	Cylinder Threaded - M30	Inductive

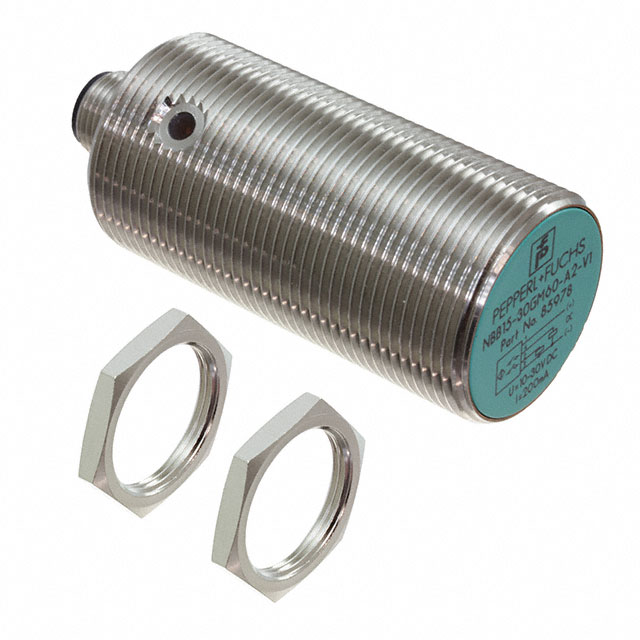

Pepperl+Fuchs, Inc. NBB15-30GM60-A2-V1	0.591 "	Connector	IP67	30 VDC	10 VDC	LED	Unshielded	Nickel-Plated Brass	4-Wire NO PNP-NC	70 °C	-40 °C	Cylinder Threaded - M30	Inductive

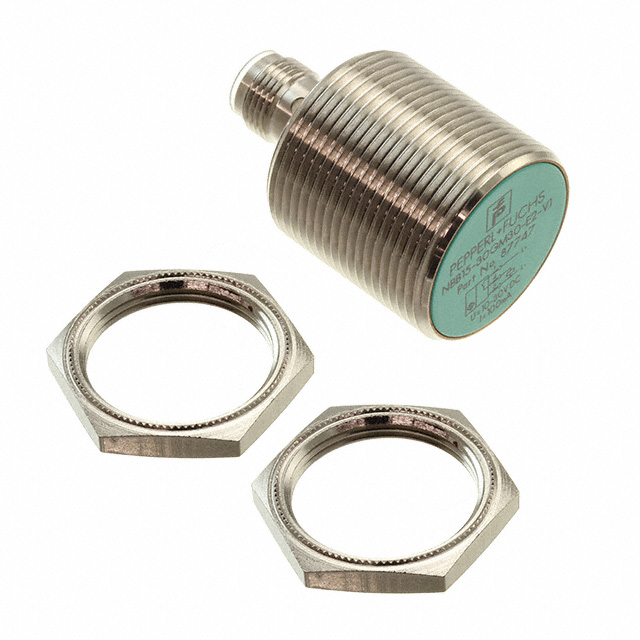

Pepperl+Fuchs, Inc. NBB15-30GM30-E2-V1	0.591 "	Connector	IP67	30 VDC	10 VDC	LED	Unshielded	Nickel-Plated Brass	3-Wire PNP-NO	70 °C	-40 °C	Cylinder Threaded - M30	Inductive

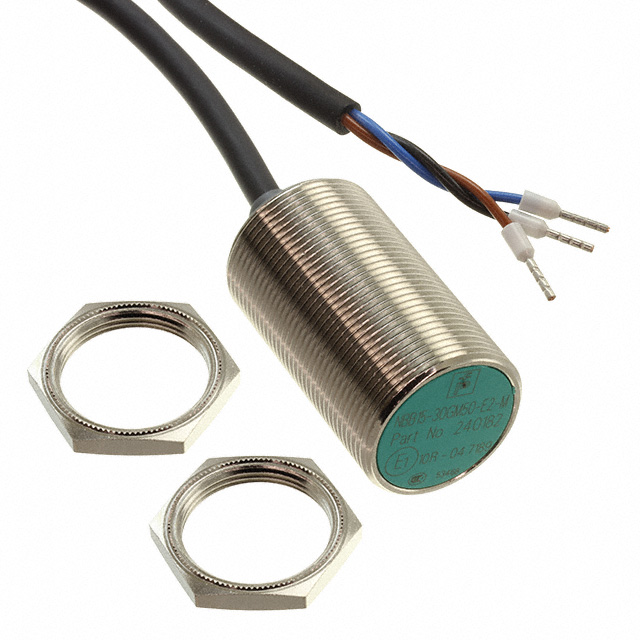

Pepperl+Fuchs, Inc. NBB15-30GM50-E2-M	0.591 "	Cable	IP68 IP69K	60 V	5 V	LED	Unshielded	Nickel-Plated Brass	3-Wire PNP-NO	85 °C	-40 °C	Cylinder Threaded - M30	Inductive

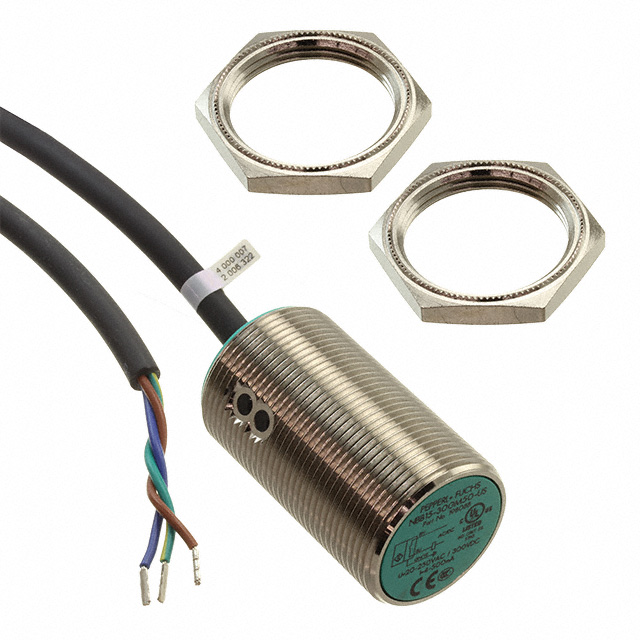

Pepperl+Fuchs, Inc. NBB15-30GM50-US	0.591 "	Cable	IP67			LED	Unshielded	Nickel-Plated Brass	2-Wire SCR-NO	70 °C	-25 °C	Cylinder Threaded - M30	Inductive	300 VDC	20 VAC	250 VAC	20 VDC
Pepperl+Fuchs, Inc. NBB15-30GM50-US-V12	0.591 "	Connector	IP67			LED	Unshielded	Nickel-Plated Brass	2-Wire SCR-NO	70 °C	-25 °C	Cylinder Threaded - M30	Inductive	300 VDC	20 VAC	250 VAC	20 VDC
