P05N-060ST-A-G

Active

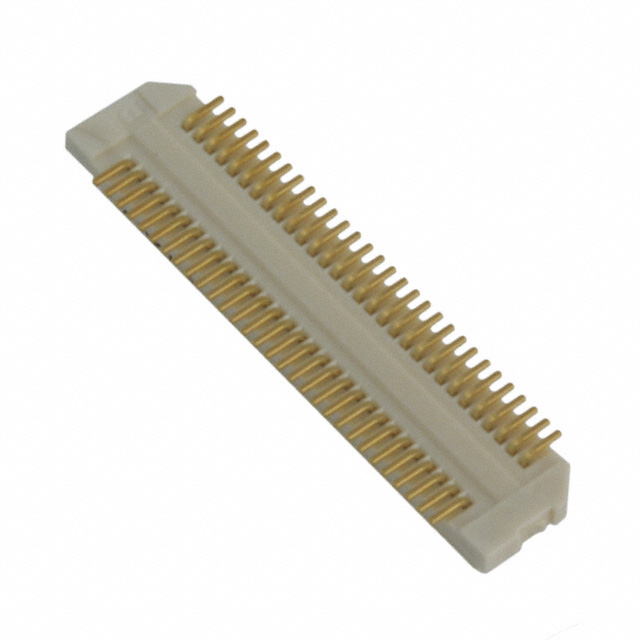

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 60POS SMD GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	P05N-060ST-A-G	P05N Series

Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	8 çin	8 çin
Contact Finish Thickness	0.203 çm	0.203 çm
Features	Solder Retention	Solder Retention
Height Above Board	-	0.094 - 0.13 in
Height Above Board	-	2.4 - 3.3 mm
Height Above Board [z]	0.093 in	0.093 in
Height Above Board [z]	2.35 mm	2.35 mm
Mated Stacking Heights	3 mm	3 - 6 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	60	20 - 100
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

CONN SOCKET 40POS SMD GOLD

Part	Features	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Height Above Board	Height Above Board
3M P05N-040ST-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm	0.093 in	2.35 mm	Outer Shroud Contacts, Socket	8 çin	0.203 çm	40	Surface Mount
3M P05N-100PT-B-G	Solder Retention	Gold	2	0.5 mm	0.02 in	4 mm				8 çin	0.203 çm	100	Surface Mount	0.13 in	3.3 mm
3M P05N-020ST-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm	0.093 in	2.35 mm	Outer Shroud Contacts, Socket	8 çin	0.203 çm	20	Surface Mount
3M P05N-080ST-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm	0.093 in	2.35 mm	Outer Shroud Contacts, Socket	8 çin	0.203 çm	80	Surface Mount
3M P05N-080PT-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm				8 çin	0.203 çm	80	Surface Mount	0.094 "	2.4 mm
3M P05N-060ST-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm	0.093 in	2.35 mm	Outer Shroud Contacts, Socket	8 çin	0.203 çm	60	Surface Mount
3M P05N-030ST-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm	0.093 in	2.35 mm	Outer Shroud Contacts, Socket	8 çin	0.203 çm	30	Surface Mount
3M P05N-020PT-A-G	Solder Retention	Gold	2	0.5 mm	0.02 in	3 mm				8 çin	0.203 çm	20	Surface Mount	0.094 "	2.4 mm
3M P05N-020ST-B-G	Solder Retention	Gold	2	0.5 mm	0.02 in	4 mm, 5 mm, 6 mm			Outer Shroud Contacts, Socket	8 çin	0.203 çm	20	Surface Mount	0.12 in	3.05 mm
