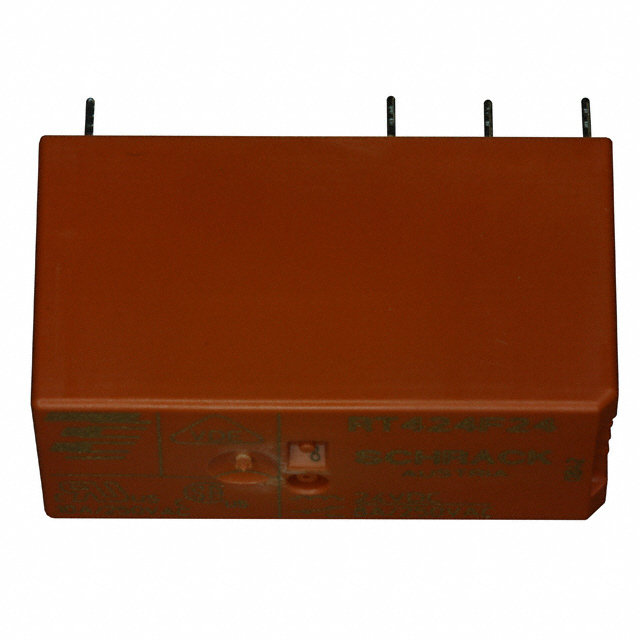

RT424F24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
RT424F24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT424F24 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 14.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 886 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.19 | |
| 20 | $ 8.61 | |||
| 40 | $ 7.27 | |||
| 100 | $ 6.89 | |||
| 260 | $ 6.12 | |||
| 500 | $ 5.74 | |||
| 1000 | $ 5.36 | |||
Description
General part information
RT424F Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
