Specification	2-2322190-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Row Spacing	0.217 in

2322190 Series

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Number of Rows	Mounting Type	Color	Connector Type	Row Spacing	Contact Type	Number of Positions	Insulation Material	Contact Termination	Pitch
TE Connectivity AMP Connectors 2-2322190-1	Contacts Not Included	-40 °C	105 °C	Lever Lock	3	Free Hanging (In-Line)	Natural	Receptacle	0.217 in	Female Socket	18	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	0.197 in
TE Connectivity AMP Connectors 3-2322190-1	Contacts Not Included	-40 °C	105 °C	Lever Lock	3	Free Hanging (In-Line)	Blue	Receptacle	0.217 in	Female Socket	18	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	0.197 in
TE Connectivity AMP Connectors 4-2322190-1	Contacts Not Included	-40 °C	105 °C	Lever Lock	3	Free Hanging (In-Line)	Violet	Receptacle	0.217 in	Female Socket	18	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	0.197 in

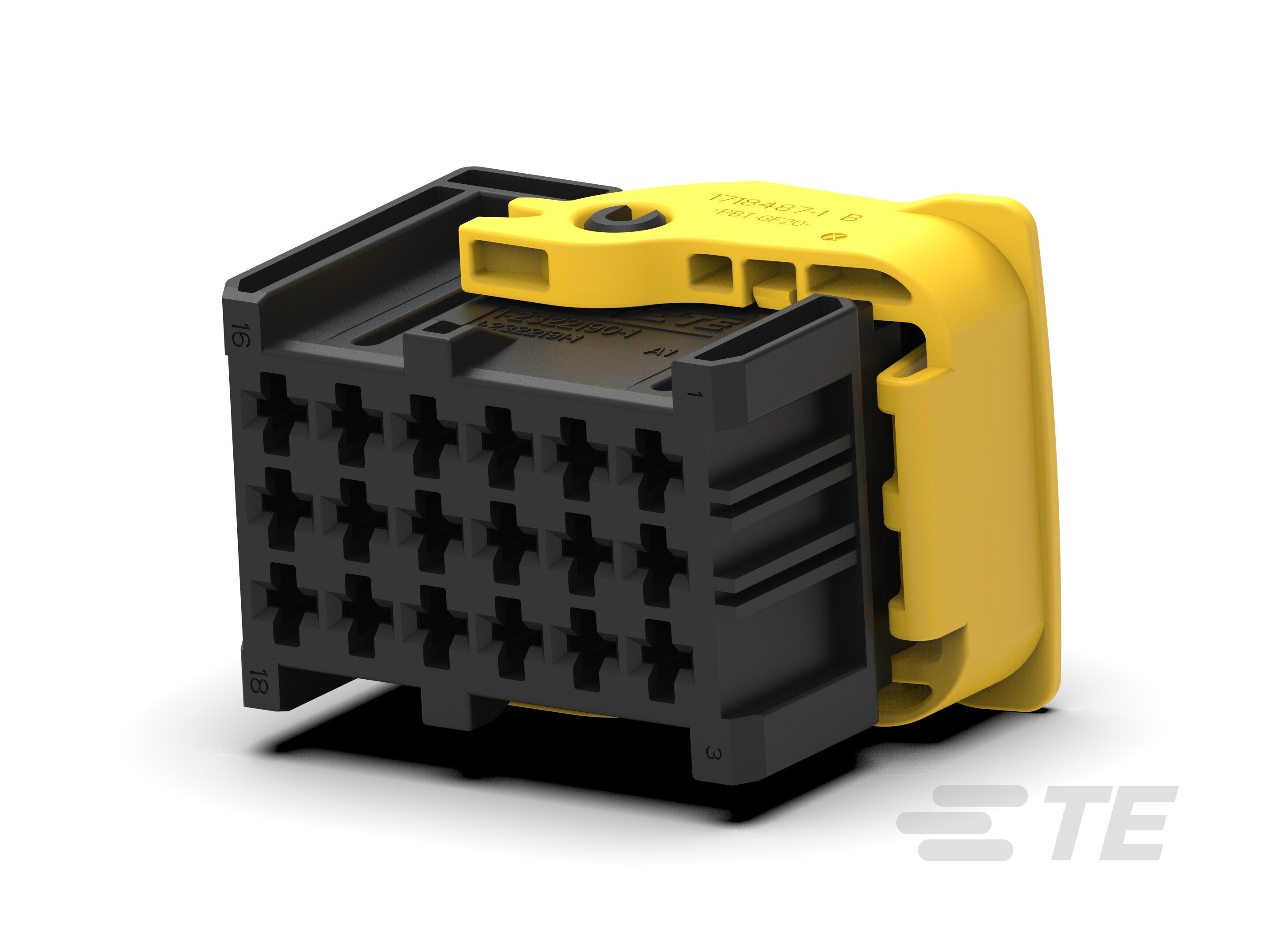

TE Connectivity AMP Connectors 1-2322190-1	Contacts Not Included	-40 °C	105 °C	Lever Lock	3	Free Hanging (In-Line)	Black	Receptacle	0.217 in	Female Socket	18	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	0.197 in
