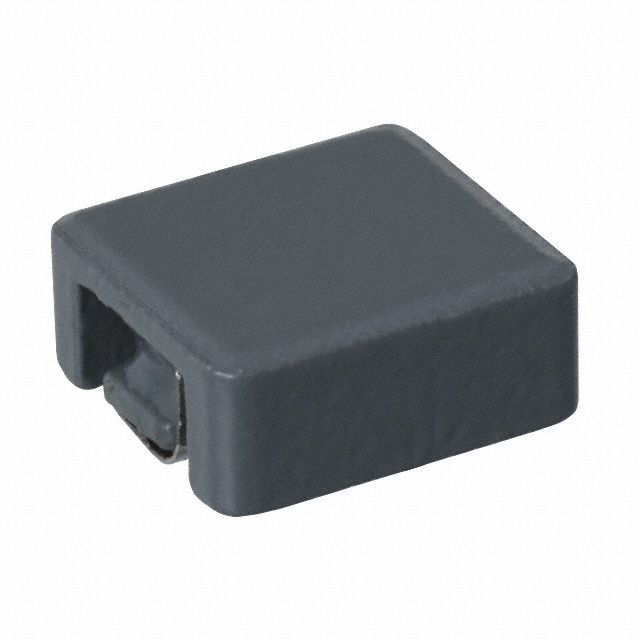

PM7232S-1R5M-RC

Active

Bourns Inc.

FIXED IND 1.5UH 9A 15 MOHM SMD

Search across all available documentation for this part.

Active

Bourns Inc.

FIXED IND 1.5UH 9A 15 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Package / Case	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Current - Saturation (Isat)	Material - Core	DC Resistance (DCR) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Current Rating (Amps)	DC Resistance (DCR)
Bourns Inc. PM7232S-1R5M-RC	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	1.5 µH	3.2 mm	0.126 in	20 %	14 A	Iron	15 mOhm	Drum Core Wirewound	-55 °C	150 °C	100 kHz
Bourns Inc. PM7232S-R72M	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	720 nH	3.2 mm	0.126 in	20 %			8 mOhm	Wirewound			100 kHz	12.5 Amps
Bourns Inc. PM7232S-R47M-RC	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	470 nH	3.2 mm	0.126 in	20 %	26 A	Iron	4.2 mOhm	Drum Core Wirewound	-55 °C	150 °C	100 kHz	17.5 A
Bourns Inc. PM7232S-R10M	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	100 nH	3.2 mm	0.126 in	20 %				Wirewound			100 kHz	22 A	1.1 mOhm
Bourns Inc. PM7232S-R10M-RC	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	100 nH	3.2 mm	0.126 in	20 %	42 A	Iron	1.7 mOhm	Drum Core Wirewound	-55 °C	150 °C	100 kHz	32.5 A
Bourns Inc. PM7232S-R22M-RC	Surface Mount	0.276 in	0.307 in	7 mm	7.8 mm	Shielded	Nonstandard	220 nH	3.2 mm	0.126 in	20 %	36 A	Iron	2.8 mOhm	Drum Core Wirewound	-55 °C	150 °C	100 kHz	23 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.5 µH Shielded Drum Core, Wirewound Inductor 9 A 15mOhm Max Nonstandard
