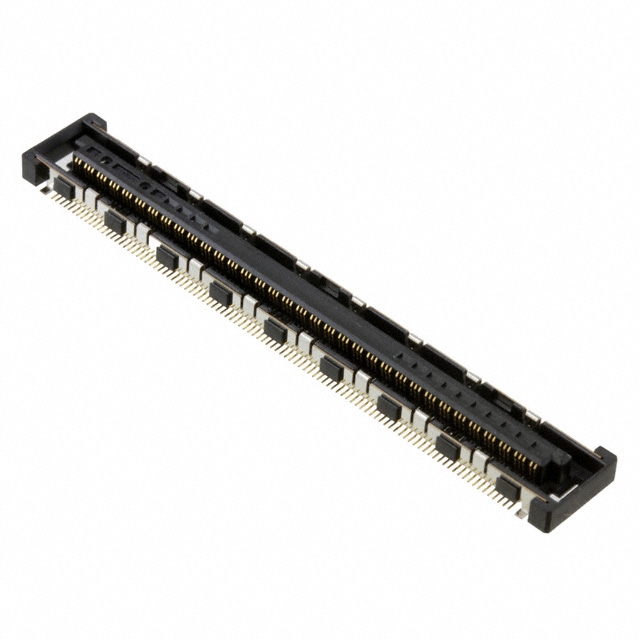

Specification	WB3F200VD1

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Solder Retention
Height Above Board	0.098 in
Mated Stacking Height Options	4mm, 5mm
Mounting Type	Surface Mount
Number of Positions	200
Number of Rows	2
Pitch	0.02 in

WB3F200 Series

Part	Connector Type	Height Above Board	Mated Stacking Height Options	Mounting Type	Number of Rows	Number of Positions	Pitch	Features	Contact Finish	Contact Finish Thickness
JAE Electronics WB3F200VD1	Center Strip Contacts Receptacle	0.098 in	4mm 5mm	Surface Mount	2	200	0.02 in	Board Guide Solder Retention	Gold	30 µin
JAE Electronics WB3F200VD1T	Center Strip Contacts Receptacle	0.126 in	4mm 5mm	Surface Mount	2	200	0.02 in	Board Guide Solder Retention	Gold	30 µin
JAE Electronics WB3F200VD1TR1000	Center Strip Contacts Receptacle	0.126 in	4mm 5mm	Surface Mount	2	200	0.02 in	Board Guide Solder Retention	Gold	30 µin
