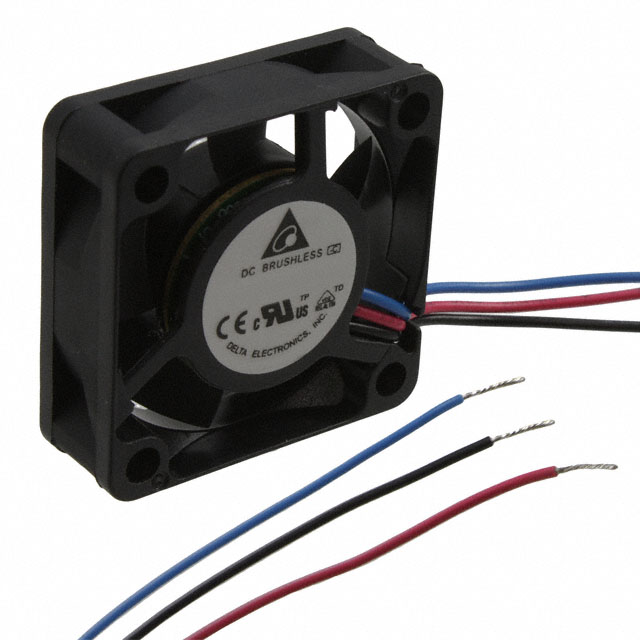

ASB0312MA-DF00

Active

Delta Electronics

FAN AXIAL 30X10MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 30X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ASB0312MA-DF00

Air Flow	0.104 m³/min
Air Flow	3.7 CFM
Approval Agency	cURus, TUV
Bearing Type	Sleeve
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	20000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	23 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	720 mW
RPM	9000 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	41.6 Pa
Static Pressure	0.167 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	7.71 g
Weight	0.017 lb
Width [y]	10 mm

Part	Weight	Weight	Noise	Static Pressure	Static Pressure	Width [y]	Material - Blade	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	RPM	Material - Frame	Fan Type	Bearing Type	Termination	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Features	Approval Agency	Power (Watts)	Current Rating (Amps)
Delta Electronics ASB0312HA-AF00	0.02 lb	9.07 g	30 dB(A)	0.22 in H2O	54.8 Pa	10 mm	Plastic	30000 Hrs	70 °C	70 °C	-10 °C	-10 °C	4.3 CFM	0.12 m³/min	13.8 VDC	6 VDC	11000 RPM	Plastic	Tubeaxial	Sleeve	3 Wire Leads	30 mm	30 mm	12 VDC	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics ASB0312MA-DF00	0.017 lb	7.71 g	23 dB(A)	0.167 in H2O	41.6 Pa	10 mm	Plastic	20000 Hrs	70 °C	70 °C	-10 °C	-10 °C	3.7 CFM	0.104 m³/min	13.8 VDC	7 V	9000 RPM	Plastic	Tubeaxial	Sleeve	3 Wire Leads	30 mm	30 mm	12 VDC	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	720 mW	60 mA
Delta Electronics ASB0312HA-C	0.017 lb	7.71 g	27 dB(A)	0.214 in H2O	53.3 Pa	10 mm	Plastic	20000 Hrs	70 °C	70 °C	-10 °C	-10 °C	4.3 CFM	0.12 m³/min	13.8 VDC	7 V	10500 RPM	Plastic	Tubeaxial	Sleeve	2 Wire Leads	30 mm	30 mm	12 VDC		CE cURus VDE	840 mW	70 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Sleeve 3.7 CFM (0.104m³/min) 3 Wire Leads
