TEMS-130-02-04.0-H-D-K-TR

Active

Samtec Inc.

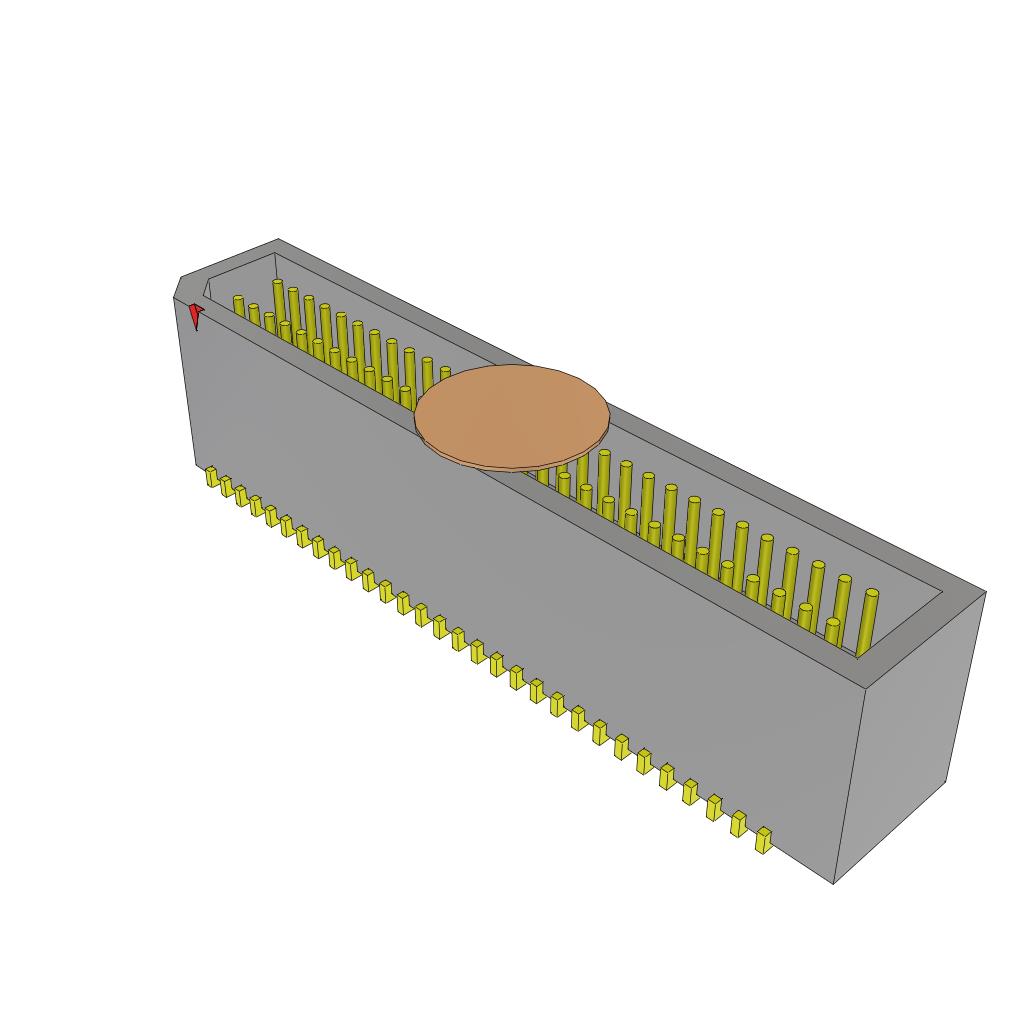

CONN SHROUDED HEADER (4 SIDES) HDR 60 POS 0.8MM SOLDER ST TOP ENTRY SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 60 POS 0.8MM SOLDER ST TOP ENTRY SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	TEMS-130-02-04.0-H-D-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	6.38 mm
Insulation Height	0.251 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating [x]	1.6 mm
Row Spacing - Mating [x]	0.063 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	235 VAC, 330 VDC

Part	Insulation Material	Connector Type	Shrouding	Voltage Rating	Contact Shape	Fastening Type	Mated Stacking Heights	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Features	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Number of Positions Loaded
Samtec Inc. TEMS-130-02-04.0-H-D-K-TR	Liquid Crystal Polymer (LCP)	Header	Shrouded - 4 Wall	235 VAC 330 VDC	Circular	Push-Pull	7 mm	1.6 mm	0.063 in	Black	Pick and Place	Male Pin	3 µin	0.076 µm	2	-55 °C	125 °C	Solder	Phosphor Bronze	Gold	Flash	Gold	60	6.38 mm	0.251 in	0.031 in	0.8 mm	Surface Mount	2.9 A	All
