Technical Specifications
Parameters and characteristics for this part
| Specification | DIGITAL_POL_EVAL_KIT |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 12 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s), Accessories, Cable(s) |
| Utilized IC / Part | PDT012 |
| Voltage - Input [Max] | 14.4 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Output [Max] | 5.5 V |
| Voltage - Output [Min] | 0.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 196.60 | |
Description
General part information
DIGITAL Series

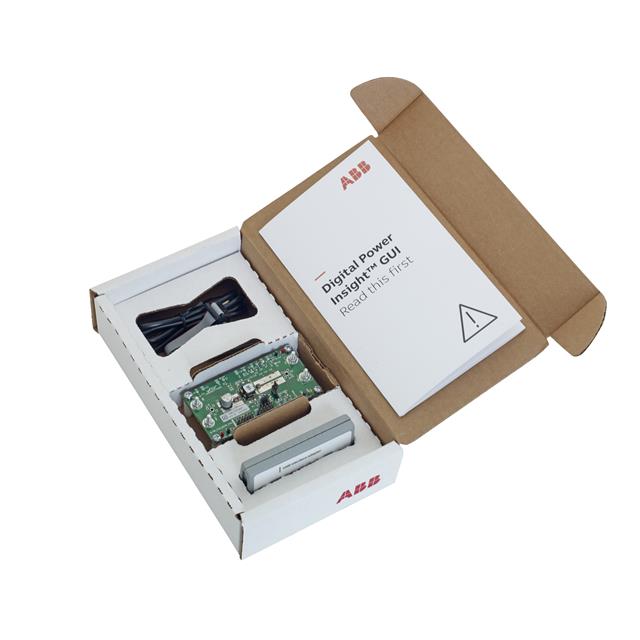

PDT012 Digital Power Insight™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
