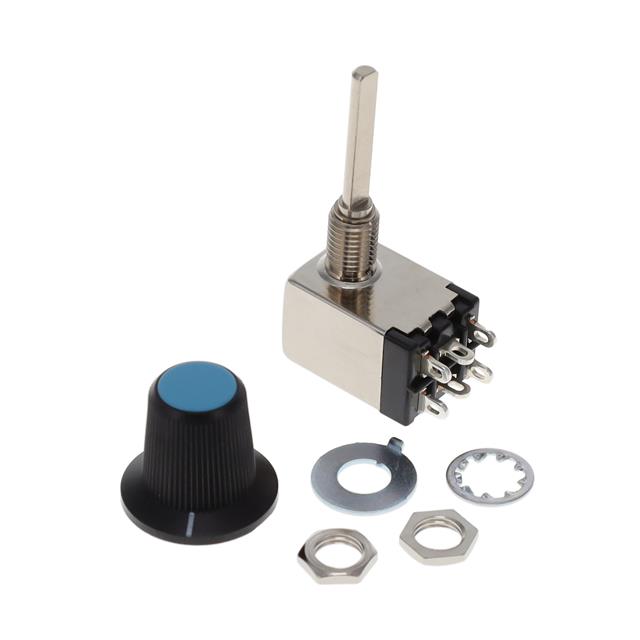

MRT23-CG

NKK Switches

MINIATURE POWER LEVEL ROTARY

Search across all available documentation for this part.

NKK Switches

MINIATURE POWER LEVEL ROTARY

Technical Specifications

Parameters and characteristics for this part

Specification	MRT23-CG

Actuator Length [x]	15.8 mm
Actuator Type	Knob
Circuit per Deck	DPDT
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	3 A, 5 A
Depth Behind Panel	12 mm
Features	Sealed - Flux Protection
Index Stops	Fixed
Mounting Type	Right Angle, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Depth Behind Panel	Actuator Type	Index Stops	Contact Timing	Actuator Length [x]	Voltage Rating - AC	Features	Panel Cutout Dimensions [diameter]	Termination Style	Contact Material	Circuit per Deck	Number of Poles per Deck	Voltage Rating - DC	Number of Decks [custom]	Mounting Type	Current Rating (Amps)
NKK Switches MRT23-CB	12 mm	Knob	Fixed	Non-Shorting	15.8 mm	125 V	Sealed - Flux Protection	0.25 in	Solder Lug	Silver Alloy	DPDT	2	30 V	1	Panel Mount Right Angle	3 A 5 A
NKK Switches MRT23-CG	12 mm	Knob	Fixed	Non-Shorting	15.8 mm	125 V	Sealed - Flux Protection	0.25 in	Solder Lug	Silver Alloy	DPDT	2	30 V	1	Panel Mount Right Angle	3 A 5 A
NKK Switches MRT23-BF	12 mm	Knob	Fixed	Non-Shorting	14.3 mm	125 V	Sealed - Flux Protection	0.25 in	Solder Lug	Silver Alloy	DPDT	2	30 V	1	Panel Mount Right Angle	3 A 5 A
NKK Switches MRT23-BA	12 mm	Knob	Fixed	Non-Shorting	14.3 mm	125 V	Sealed - Flux Protection	0.25 in	Solder Lug	Silver Alloy	DPDT	2	30 V	1	Panel Mount Right Angle	3 A 5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 3 Position DPDT 5A (AC), 3A (DC) 125 VAC Panel Mount, Right Angle
