Specification	WSK1206R0300FEA

Composition	Metal Element
Features	Pulse Withstanding, Current Sense, Moisture Resistant
Height - Seated (Max)	0.035 in
Number of Terminations	4
Operating Temperature (Max)	170 °C
Operating Temperature (Min)	-65 °C
Package / Case	1206 (3216 Metric), Concave
Package Name	1206
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	0.03 Ohms
Size / Dimension Length	0.126 in
Size / Dimension Width	0.063 in
Temperature Coefficient	35 ppm/°C
Tolerance	1 %

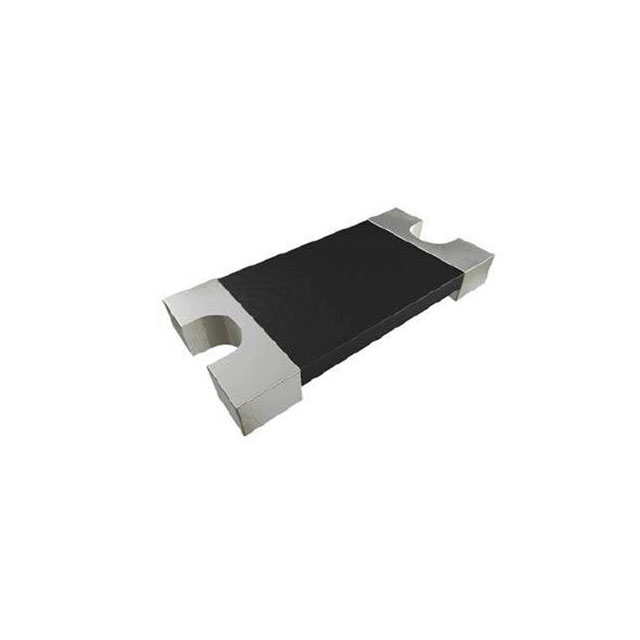

WSK1206 Series

Part	Package Name	Tolerance	Height - Seated (Max)	Power (Watts)	Power (Watts) Options	Temperature Coefficient	Package / Case	Resistance	Size / Dimension Width	Size / Dimension Length	Composition	Number of Terminations	Operating Temperature (Min)	Operating Temperature (Max)	Features
Vishay Dale WSK1206R0300FEA	1206	1 %	0.035 in	250 mW	1/4W	35 ppm/°C	1206 (3216 Metric) Concave	0.03 Ohms	0.063 in	0.126 in	Metal Element	4	-65 °C	170 °C	Current Sense Moisture Resistant Pulse Withstanding
Vishay Dale WSK1206R0390FEA	1206	1 %	0.035 in	250 mW	1/4W	35 ppm/°C	1206 (3216 Metric) Concave	39 mOhms	0.063 in	0.126 in	Metal Element	4	-65 °C	170 °C	Current Sense Moisture Resistant Pulse Withstanding
Vishay Dale WSK1206R0150FEA	1206	1 %	0.035 in	250 mW	1/4W	35 ppm/°C	1206 (3216 Metric) Concave	15 mOhms	0.063 in	0.126 in	Metal Element	4	-65 °C	170 °C	Current Sense Moisture Resistant Pulse Withstanding
