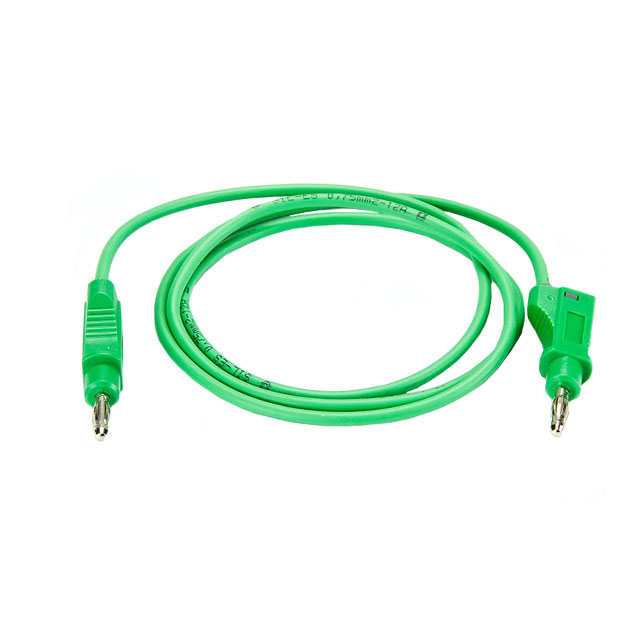

CT2131-150-5

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 59.1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2131-150-5

Active

Cal Test Electronics

TEST LEAD BANANA TO BANANA 59.1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.00

Description

General part information

CT2131 Series

59.1" (1500.00mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 33VAC, 70VDC

Documents

Technical documentation and resources

Datasheet

Specification	CT2131-150-5	CT2131 Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Banana Plug, Single, Stackable	Banana Plug, Single, Stackable
Cable Length	59.1 in	9.8 - 78.7 in
Cable Length	1.5 m	1.5 - 250 mm
Cable Length	-	4 in
Cable Length	-	101.6 mm
Configuration	Banana to Banana	Banana to Banana
Contents	-	1
Contents	-	Red, 1 Lead, Blue, Yellow, 1 Lead, 1 Lead, White, 1 Lead, Black
Current Rating (Amps)	12 A	12 A
Material - Insulation	Silicone	Silicone
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	33 VAC, 70 V	33 - 70 VAC
Wire Gauge	18 AWG	18 AWG

Part	Type	Cable Length	Cable Length	Stacking Method	Contents [custom]	Contents	Material - Insulation	1st Connector	Wire Gauge	Voltage - Rated	Configuration	Current Rating (Amps)	2nd Connector	Cable Length [x]	Cable Length [x]
Cal Test Electronics CT2131-25-2	Patch Cord	250 mm	9.8 in	Front Stacking	1	Red	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-25-6	Patch Cord	250 mm	9.8 in	Front Stacking		1 Lead, Blue	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-25-4	Patch Cord	250 mm	9.8 in	Front Stacking		1 Lead, Yellow	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-150-5	Patch Cord	1.5 m	59.1 in	Front Stacking			Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-200-4	Patch Cord	2 m	78.7 in	Front Stacking		1 Lead, Yellow	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-50-2	Patch Cord	50 cm	19.7 in	Front Stacking	1	Red	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-10-2	Patch Cord			Front Stacking	1	Red	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable	4 in	101.6 mm
Cal Test Electronics CT2131-100-9	Patch Cord	100 cm	39.4 in	Front Stacking		1 Lead, White	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-50-5	Patch Cord	50 cm	19.7 in	Front Stacking			Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
Cal Test Electronics CT2131-50-9	Patch Cord	50 cm	19.7 in	Front Stacking		1 Lead, White	Silicone	Banana Plug, Single, Stackable	18 AWG	33 VAC, 70 V	Banana to Banana	12 A	Banana Plug, Single, Stackable
