BU-1120-A-12-0

Active

MUELLER ELECTRIC

TEST LEAD, 4MM BANANA PLUG TO HOOK CLIP, BLACK, 300 V, 5 A, 304.8 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BU-1120-A-12-0

Active

MUELLER ELECTRIC

TEST LEAD, 4MM BANANA PLUG TO HOOK CLIP, BLACK, 300 V, 5 A, 304.8 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-1120-A-12-0	BU-1120 Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Mini Hook	Mini Hook
Cable Length	12 in	5 - 48 in
Cable Length	304.8 mm	304.8 - 1524 mm
Configuration	Banana to Grabber, Hook	Banana to Grabber, Hook
Contents	1 Lead, Black	1 Lead, Black, Red
Contents	-	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Nylon, Poly-Vinyl Chloride (PVC)	Nylon, Poly-Vinyl Chloride (PVC)
Ratings	300 V	300 V
Ratings	CAT II	CAT II
Stacking Method	Multi-Stacking, Front and Vertical	Multi-Stacking, Front and Vertical
Type	Patch Cord	Patch Cord
Voltage - Rated	300 V	300 V
Wire Gauge	20 AWG	20 AWG

BU-1120 Series

GRABBER TO BANANA PLUG TEST LEAD, HOOK CLIP, 4MM STACKABLE BANANA PLUG, 36 ", 914 MM, BLACK, 5 A

Part	Current Rating (Amps)	Wire Gauge	Configuration	Type	Ratings	Ratings	Cable Length	Cable Length	Contents	Voltage - Rated	1st Connector	Material - Insulation	2nd Connector	Stacking Method	Contents [custom]
MUELLER ELECTRIC BU-1120-A-36-0	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	36 in	914.4 mm	1 Lead, Black	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking
MUELLER ELECTRIC BU-1120-A-36-2	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	36 in	914.4 mm	Red	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking	1
MUELLER ELECTRIC BU-1120-A-24-2	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	24 "	609.6 mm	Red	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking	1
MUELLER ELECTRIC BU-1120-A-48-0	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	48 in	1219.2 mm	1 Lead, Black	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking
MUELLER ELECTRIC BU-1120-A-60-2	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	5 ft	1524 mm	Red	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking	1
MUELLER ELECTRIC BU-1120-A-48-2	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	48 in	1219.2 mm	Red	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking	1
MUELLER ELECTRIC BU-1120-A-24-0	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	24 "	609.6 mm	1 Lead, Black	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking
MUELLER ELECTRIC BU-1120-A-12-0	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	12 in	304.8 mm	1 Lead, Black	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking
MUELLER ELECTRIC BU-1120-A-12-2	5 A	20 AWG	Banana to Grabber, Hook	Patch Cord	300 V	CAT II	12 in	304.8 mm	Red	300 V	Banana Plug, Single, Stackable	Nylon, Poly-Vinyl Chloride (PVC)	Mini Hook	Front and Vertical, Multi-Stacking	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.69
Newark	Each	100	$ 10.63

Description

General part information

BU-1120 Series

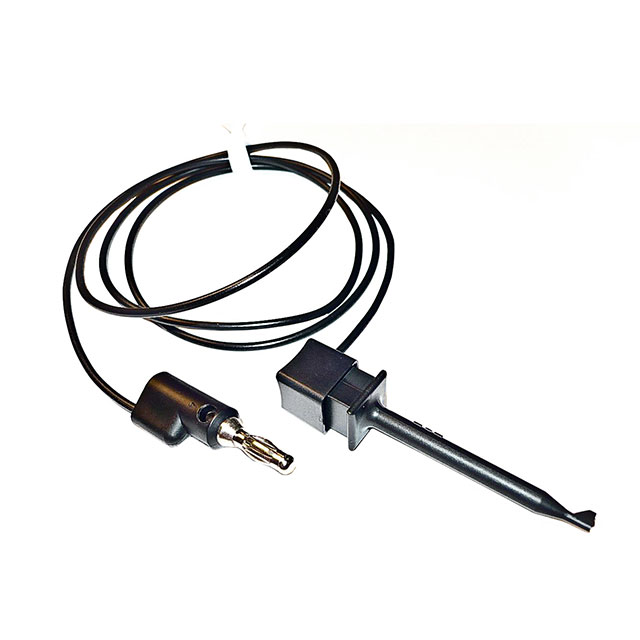

BU-1120-A black colored test lead with a miniature plunger clip to an overmolded, stackable 4mm banana plug.
