KM00.1205.11

Active

SCHURTER Inc.

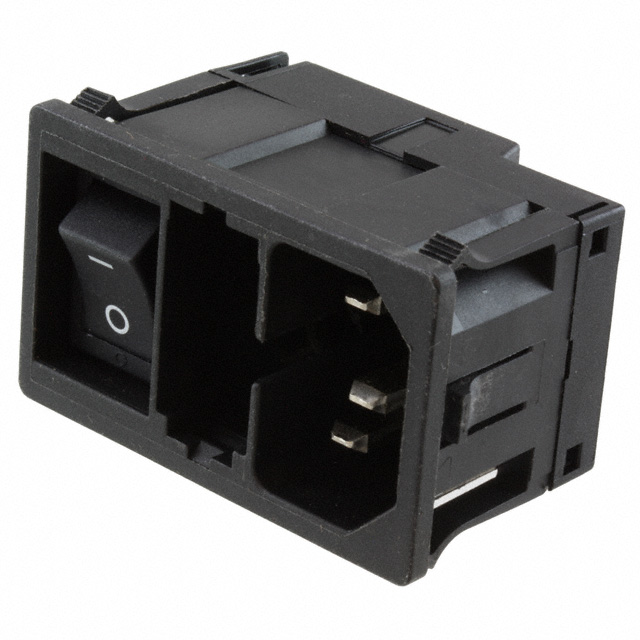

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Search across all available documentation for this part.

Active

SCHURTER Inc.

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	KM00.1205.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28 mm
Panel Cutout Dimensions [y]	47 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Switch Features	Approval Agency	Voltage Rating - Appliance Inlet	Ingress Protection	Filter Type	Connector Style	Material Flammability Rating	Connector Type	Mounting Type	Features	Termination	Termination	Accomodates a Fuse	Fuse Holder, Drawer	Current Rating - Appliance Inlet
SCHURTER Inc. KM00.1205.11	47 mm	28 mm	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	CCC, cULus, ENEC	250 VAC	IP40	Unfiltered - Commercial	IEC 320-C14	UL94 V-0	Receptacle, Male Blades - Module	Panel Mount, Snap-In	Terminating Cover	0.189 ", 4.8 mm	Quick Connect		Drawer Sold Separate	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
