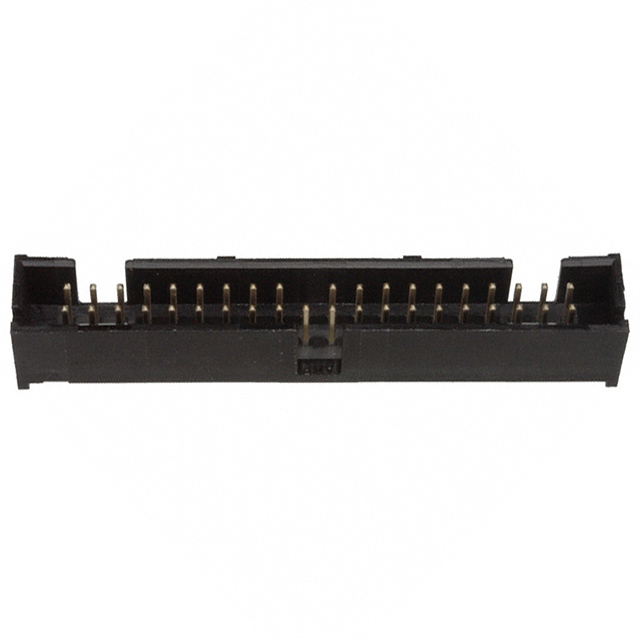

111782-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 40POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
111782-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 40POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 111782-8 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.50 | |
| 40 | $ 2.70 | |||
| 120 | $ 2.50 | |||
| 520 | $ 2.25 | |||
| 1000 | $ 2.15 | |||
| 5000 | $ 1.92 | |||
111782 Series
CONN HEADER VERT 40POS 2.54MM
| Part | Connector Type | Shrouding | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Style | Number of Rows | Insulation Material | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Length - Mating | Contact Length - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Shape | Mounting Type | Contact Finish - Post | Contact Finish - Mating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 111782-8 | Header | Shrouded - 4 Wall | Keying Slot | 2.54 µm | 100 µin | Black | Solder | 2.54 mm | 0.1 in | 39 | Board to Cable/Wire | 2 | Glass Filled, Nylon, Polyamide (PA) | 0.1 in | 2.54 mm | 1 A | -65 ░C | 105 ░C | Male Pin | 6.1 mm | 0.24 in | 15 µin | 0.38 µm | 40 | Square | Through Hole | Tin-Lead | Gold or Gold-Palladium | 250 VAC |
Description
General part information
111782 Series
Connector Header Through Hole 40 position 0.100" (2.54mm)
