1-1355470-5

Active

TE Connectivity AMP Connectors

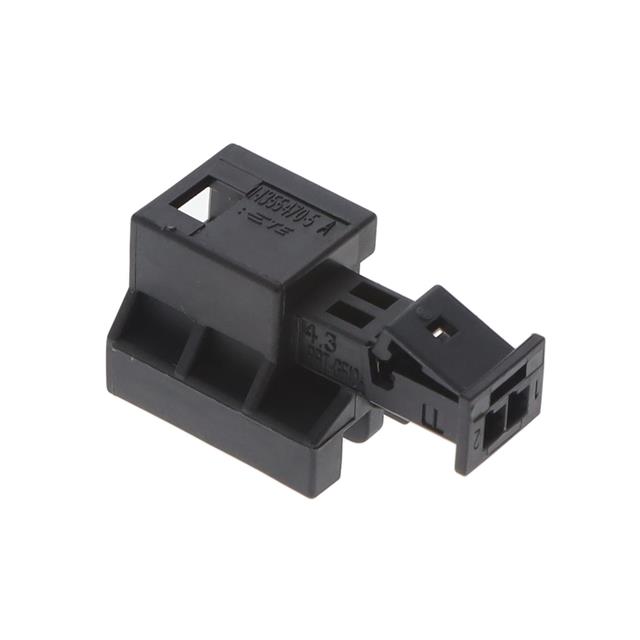

PIN HOUSING,2POS,MQS,BLACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

PIN HOUSING,2POS,MQS,BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1-1355470-5

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

PIN HOUSING,2POS,MQS,BLACK

Part	Insulation Material	Contact Termination	Fastening Type	Mounting Type	Connector Type	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1-1355470-5	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Latch Lock	Free Hanging (In-Line)	Plug	Black	Tab	-40 °C	120 °C	Terminal Position Lock (TPA)	1	2	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
