2-1104016-3
ActiveTE Connectivity AMP Connectors

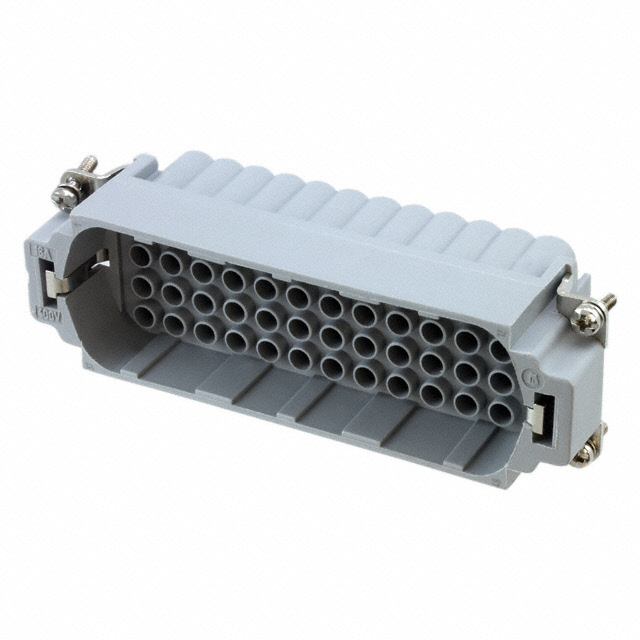

INSERT MALE 48POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1104016-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 48POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1104016-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HVT |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 8 |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.96 | |
| 10 | $ 53.03 | |||
| 25 | $ 49.23 | |||
| 50 | $ 46.55 | |||
1104016 Series
INSERT MALE 48POS+1GND CRIMP
| Part | Color | Termination Style | Housing Material | Voltage Rating | Gender | Connector Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1104016-3 | Gray | Crimp | Polybutylene Terephthalate (PBT) | 400 V | Male | Insert without Contacts | 16 A | 125 °C | -40 °C | HVT | 48 | 8 |
Description
General part information
1104016 Series
Male Insert without Contacts Gray 48+Ground Position Crimp
