RSN116130
ActiveRELAY SOCKET, MIL-PRF-12883, THROUGH HOLE, SOLDER, 8 PINS, 10 A
Deep-Dive with AI
Search across all available documentation for this part.
RSN116130
ActiveRELAY SOCKET, MIL-PRF-12883, THROUGH HOLE, SOLDER, 8 PINS, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSN116130 |
|---|---|
| For Use With/Related Products | MS27401 Relays |
| Mounting Type | Chassis Mount |
| Number of Positions | 8 |
| Termination Style | PC Pin |
| Type | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 111.33 | |
| 10 | $ 105.15 | |||
| 25 | $ 98.96 | |||
| 50 | $ 92.78 | |||
| 100 | $ 86.59 | |||
Description
General part information
RSN11 Series

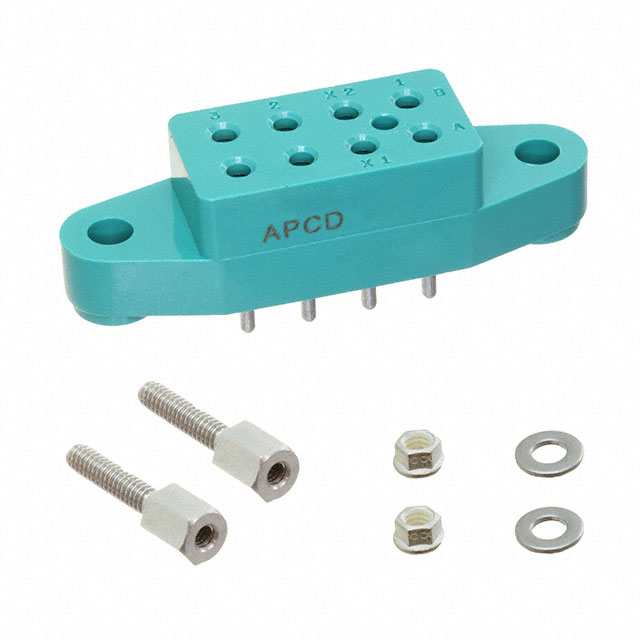

RSN116130 is a 10A, board mount (MIL-PRF-12883) relay socket. The product line of pluggable, PC board mount relay socket allows separable mounting of relays direct to boards in airborne or ground applications. Polyetherimide body and scalloped mounting flange reduce weight and improve strength. Mounting hardware supplied with connector secures firmly to board and eliminates stress on solder contacts. Meets all applicable specifications.
