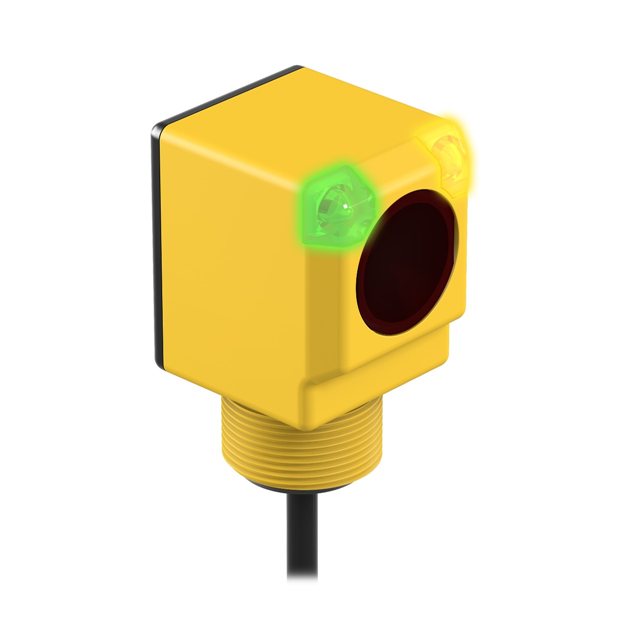

Q40RW3RQ1

Active

BANNER ENGINEERING

EZ-BEAM Q40 SERIES: RECEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM Q40 SERIES: RECEIVER

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Connection Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Method	Light Source	Cable Length	Cable Length
BANNER ENGINEERING Q40RW3R	NEMA 6P IEC IP67	Cable	16 ms	20 VAC	250 VAC	60 m	196.85 ft	SPST - Dark-ON	-40 °C	70 °C	Through-Beam	Infrared	78.74 in	2 m
BANNER ENGINEERING Q40RW3RQ1	NEMA 6P IEC IP69K	Connector	16 ms	20 VAC	250 VAC	60 m	196.85 ft	SPST - Dark-ON	-40 °C	70 °C	Through-Beam	Infrared
BANNER ENGINEERING Q40RW3FF400Q1	IEC IP69K NEMA 6P	Connector	16 ms	20 VAC	250 VAC	400 mm	15.748 in	SPST - Dark-ON	-40 °C	70 °C	Background Suppression	Infrared

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.00
Newark	Each	1	$ 125.00

General part information

Through-Beam Optical Sensor 196.85' (60m) SPST - Dark-ON
